RCM KVM over IP Switch User Manual

162

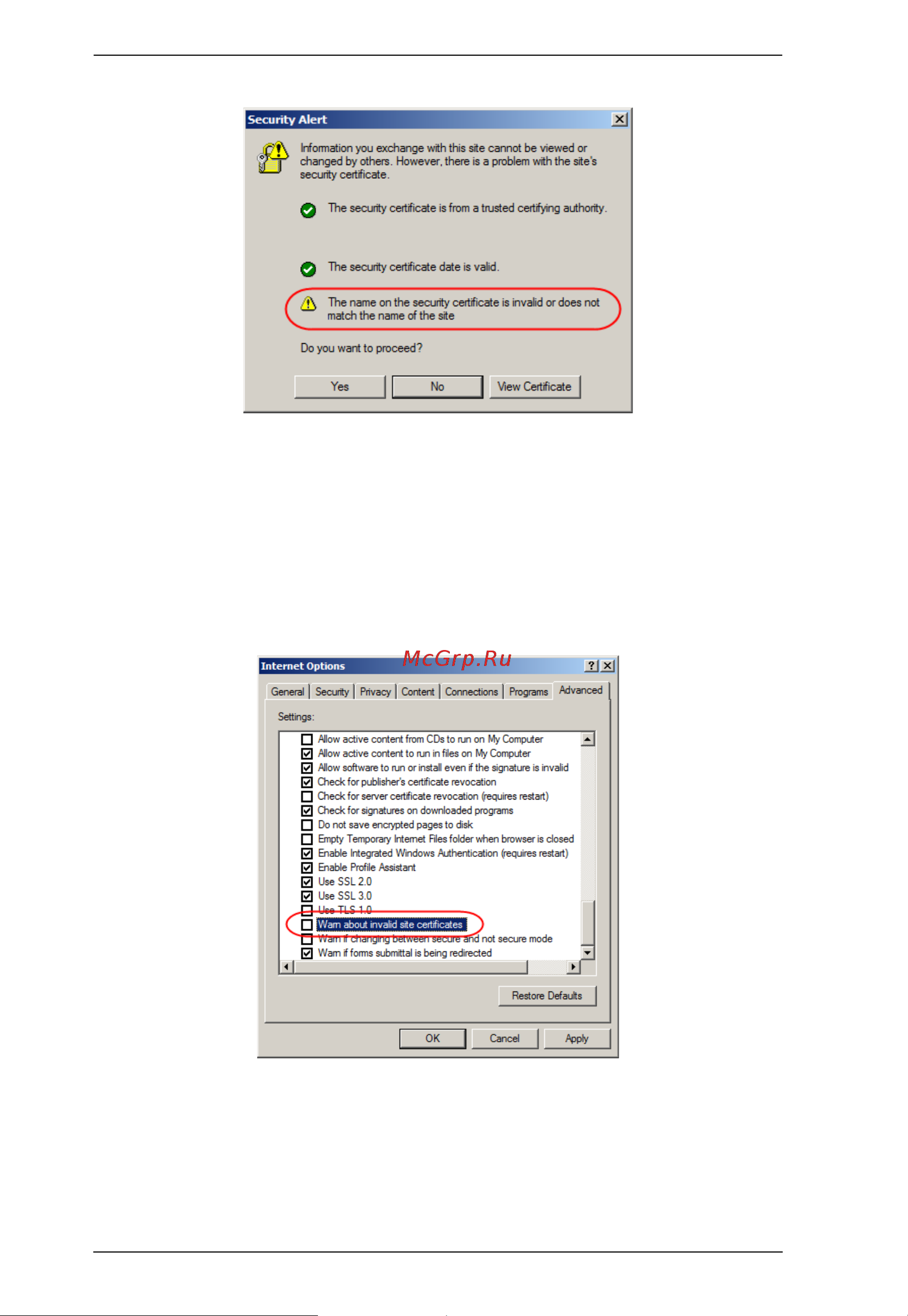

You can click Yes to go on, or you can disable mismatch checking.

To disable mismatch checking, do the following:

1. After the page you are logging in to comes up open the browser’s Tools

menu; Select Internet Options

→

Advanced.

2. Scroll to the bottom of the list and uncheck Warn about trusted

certificates:

3. Click OK. The next time you run the browser the change will be in effect.
