Chapter 1. Introduction
15

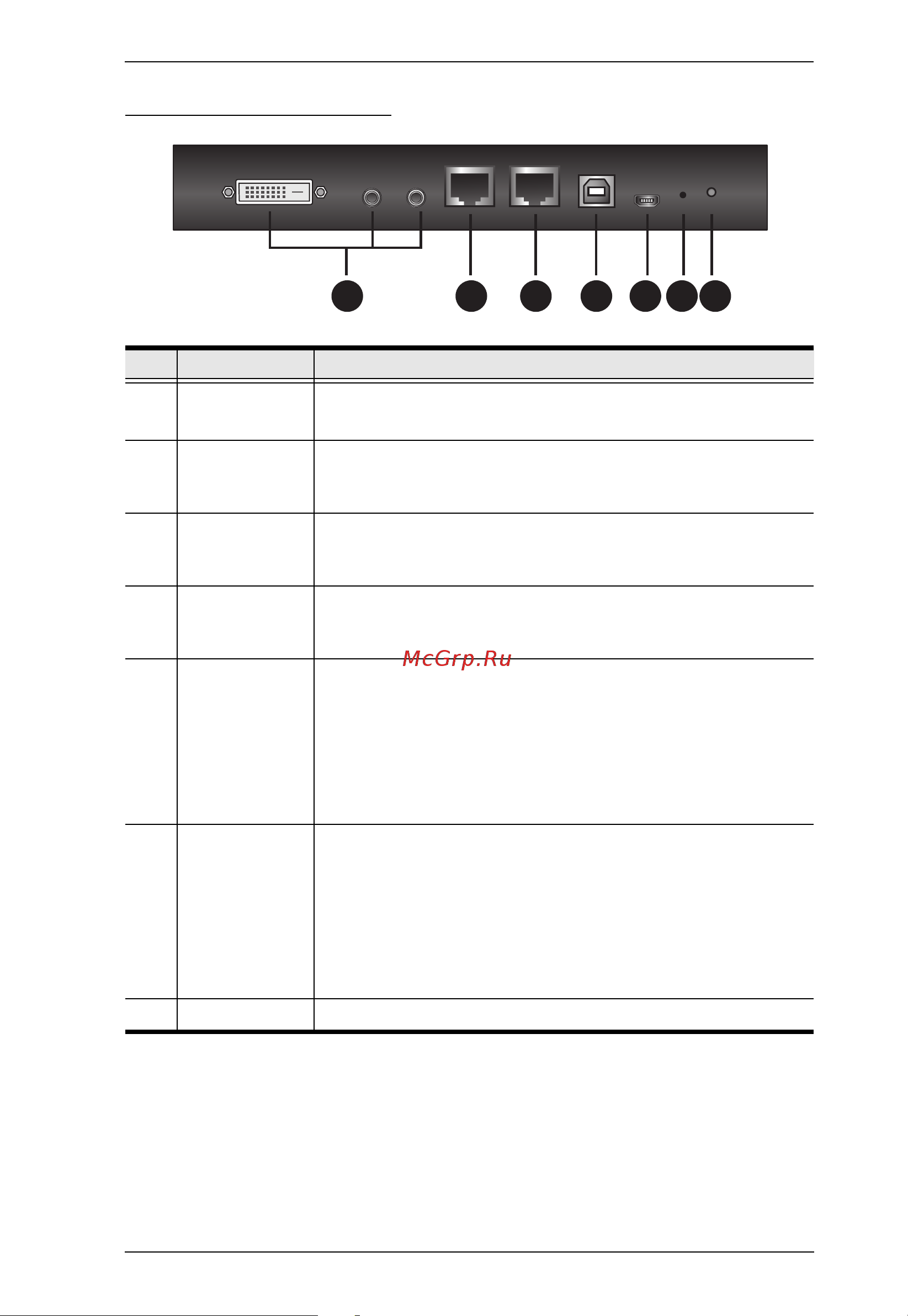

RCMDVI101 Front View
No. Component Description
1 PC/KVM port Use the KVM cable provided to connect the PC / workstation
to be controlled through this port.
2 CPU COM
(RS-232 DTE)
port
Connect a serial data communication equipment device (e.g. a
modem or PC) to this port. See DCE and DTE Ports, page 27.
3 local console
COM (RS-232
DCE) port
Connect a serial data terminal equipment device (e.g. a PC or
touch panel) to this port. See DCE and DTE Ports, page 27.
4 USB Type-B
port
Connect the keyboard/mouse to the PC / workstation you are
installing using the USB Type-A to USB Type-B cable
provided.
5 laptop USB
console (LUC)
port
For laptop local access (See Local Access, page 131),
connect the laptop to this port using the USB Type-A to USB
Mini-B cable provided.
Make sure the mode of USB IO Settings (see USB IO
Settings, page 83) is set to LUC.
If the mode of USB IO Settings is set to Virtual Media, this port
will not work.
6 reset button 1. Press the reset button for more than 3 seconds to revert
the unit back to factory default settings.
2. Press and hold the reset button while powering on the
switch to return the unit to its factory default firmware level.
This operation should only be performed in the event of a
firmware upgrade failure that results in the device
becoming inoperable.
7 power LED Lights green when the unit is powered on.
