Aten PE6216 [16/76] Requirements

eco PDU Series User Manual

Requirements

 Browsers accessing the eco PDU unit must support TLS 1.0.

 For cold booting of attached computers, the computer's BIOS must

support Wake on LAN or System after AC Back.

 For safe shutdown:

 The computer must be running Windows (Windows 2000 or above) or

Linux.

 The safe shutdown program — PMonitor — must be installed and

running on the computer (available by download from our website).

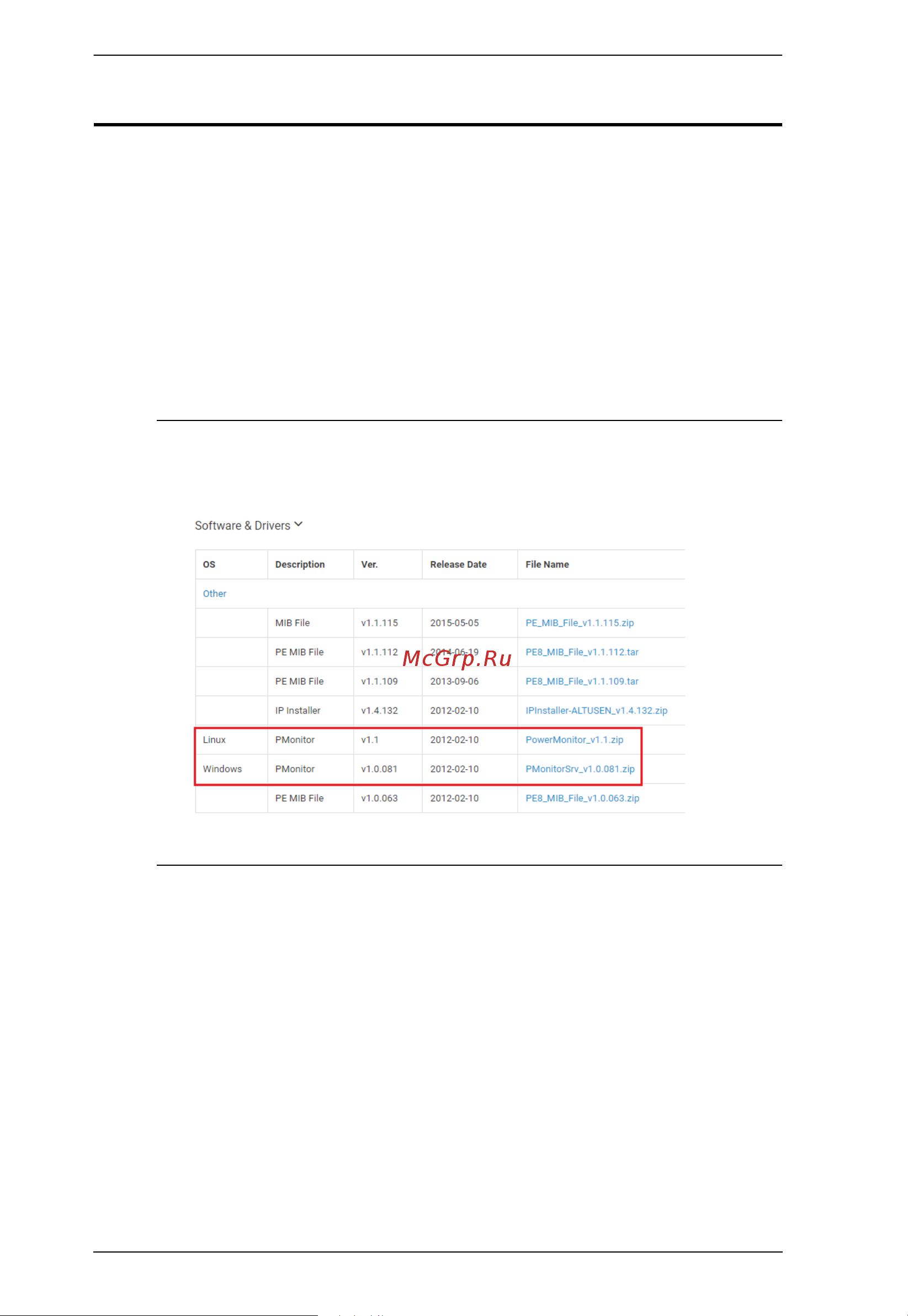

Note:Safe shutdown program PMonitor can be downloaded from the

Support and Download section of the product web page, as shown

below
