eco PDU Series User Manual
14

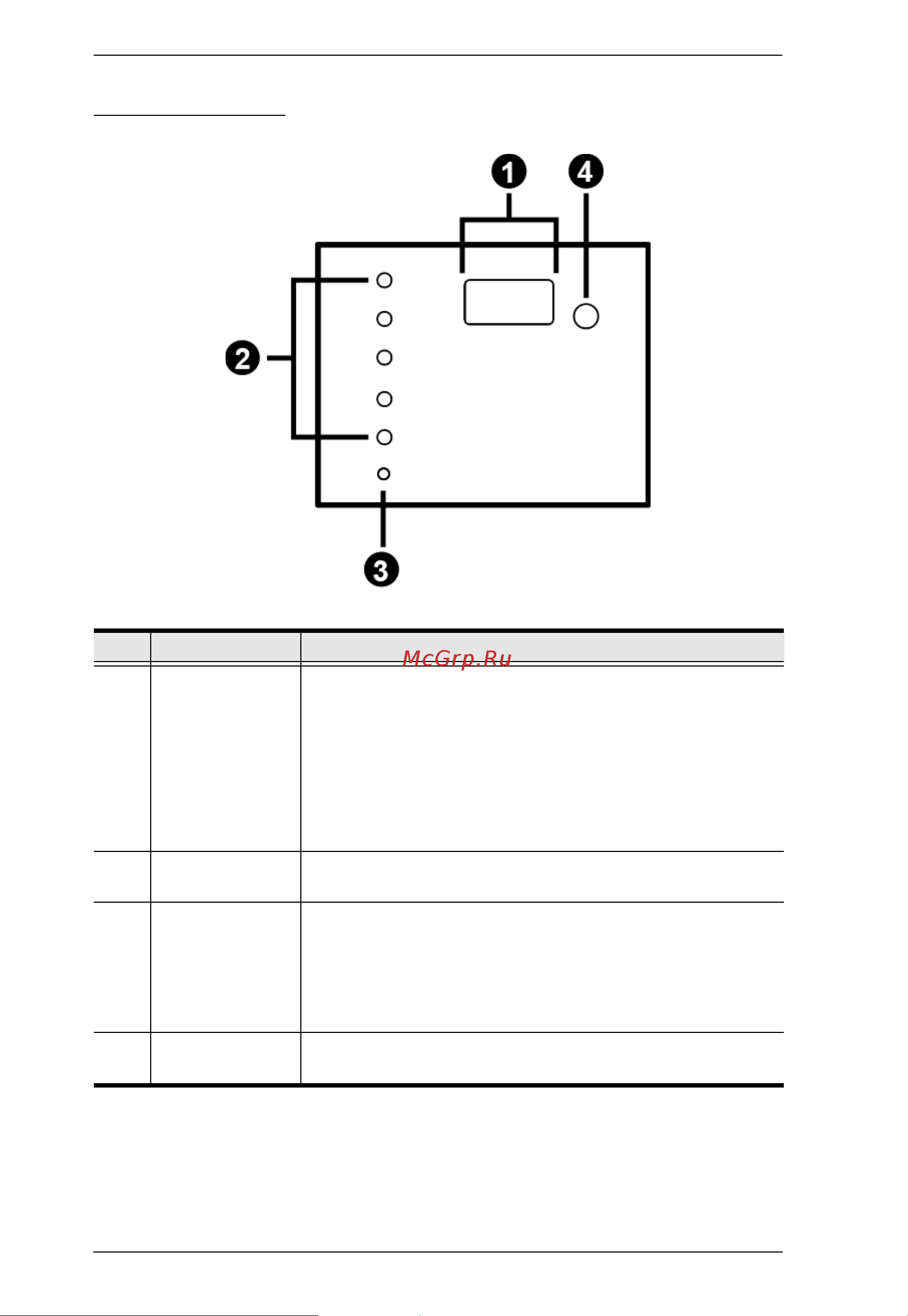

Readout Section
No. Item Description
1 readout panel
The selection (PDU Current / IP Address) appears in the
first part of the display window.
PDU Current / IP Address appear in the second part of the
display window
The LEDs above the items indicate which one the readout
relates to.
Press the button next to the first display window to cycle
the selection between the items.
2 LEDs These LEDs indicate status for Power, PDU Current, IP
address and Sensors
3 reset button This button is recessed and must be pushed with a thin
object, such as the end of a paper clip.
Press and release to reboot the device.
Press and hold for more that three seconds to reset
the eco PDU to its factory default settings
4 selection
pushbutton
Press this button to cycle the selection through the items.
