eco PDU Series User Manual
30
Outlet Status
If your eco PDU models supports outlet level power management, manual On/
Off/Reboot switching can be performed on this page.
On / Off / Reboot

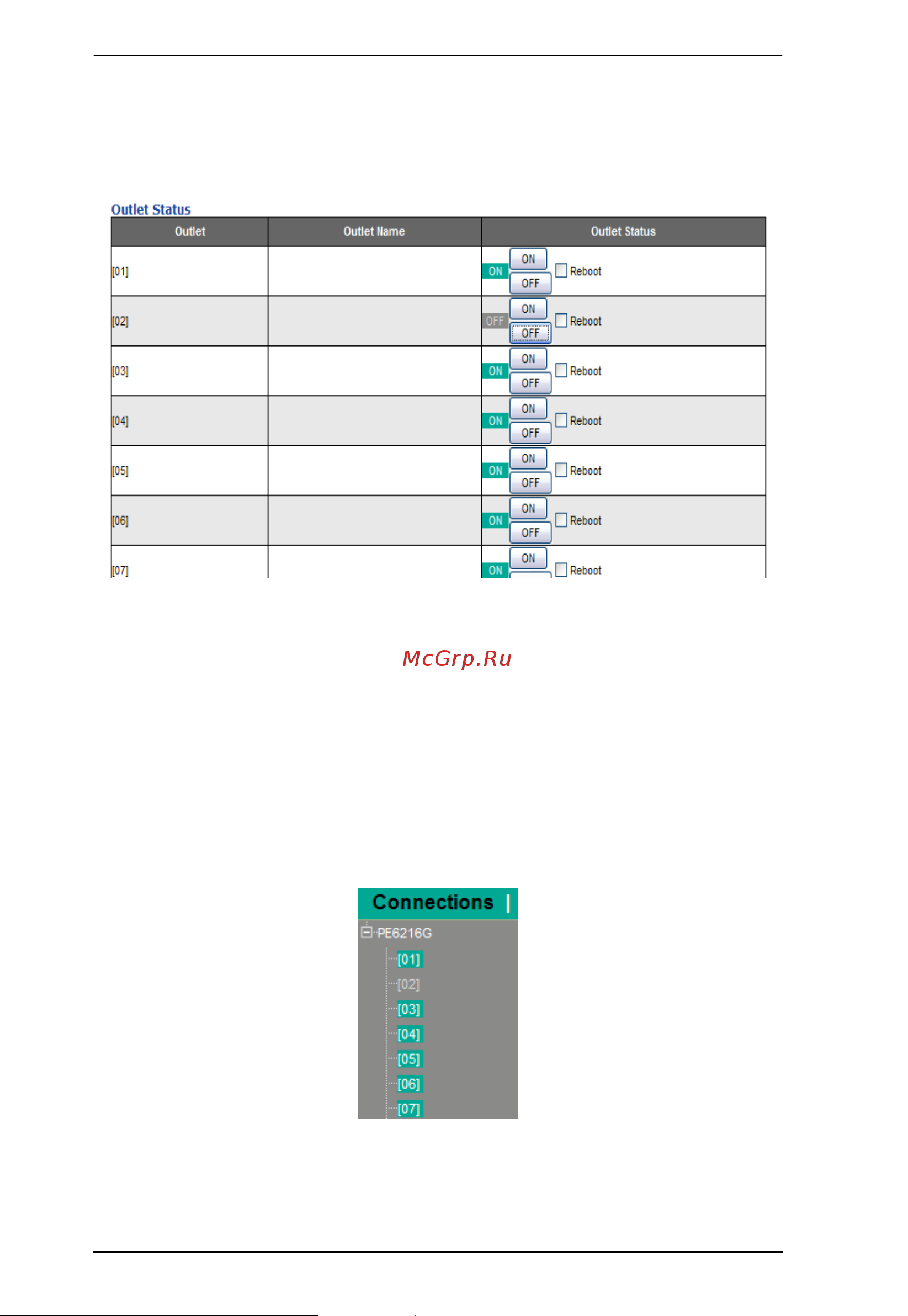

You can manually turn the outlet On and Off from this page by clicking the
buttons. To Reboot the outlet, enable the Reboot checkbox and click on
Save (located at the bottom of the page).
Sidebar
When an outlet is manually powered off, its number also appears grayed-out in
the side bar, as below:
