eco PDU Series User Manual

The eco PDU Main Page

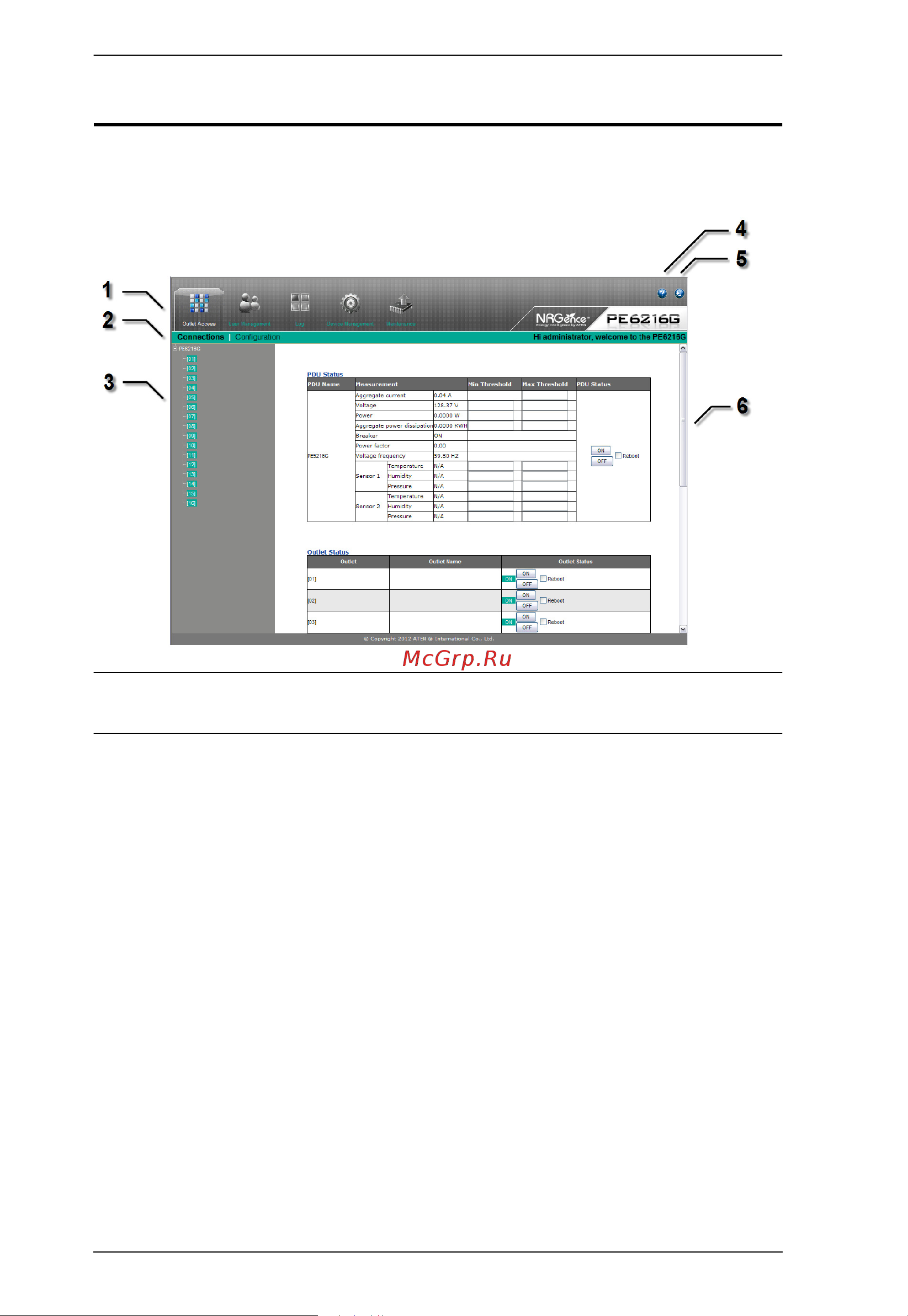

After you have successfully logged in, the eco PDU main page comes up with

the Outlet Access Connections page displayed:

Note: The screen depicts an administrator’s page. Depending on a user’s type

and permissions, and your PE model, not all of these elements appear.
