SYNCHRONIZATION

114

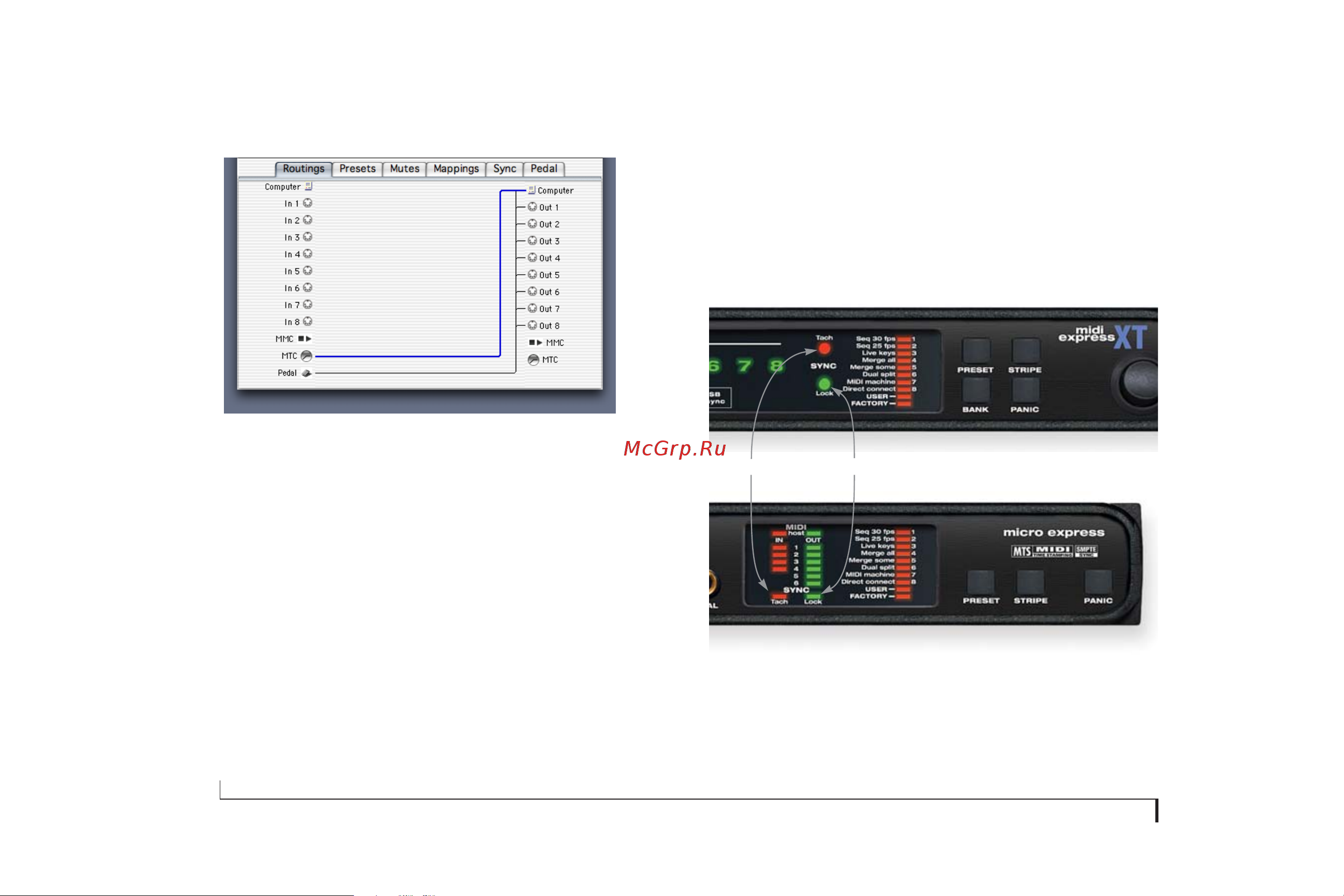

Figure 8-1: The connection from the MTC out port to the computer in port deliv-

ers MIDI Time Code from the Express interface to software running on the

computer. (If you are running Mac OS 9, this connection is shown in Figure 6-20

on page 71.)

When this MTC routing is present, your Express interface

will send MIDI Time Code to the computer as soon as it

achieves lockup to the incoming time code. Any software

running on the computer — including ClockWorks —

can then slave to the time code. (Make sure the software is

set up to lock to MIDI time code.)

When your Express interface locks to the time code, the

green “LOCK” LED on the front panel glows steadily and

the red “TACH” LED blinks regularly. In addition, the

green computer OUT LED glows steadily, indicating that

MIDI time code (MTC) is being sent to the computer.

Figure 8-2: Converting time code. When your Express interface converts incom-

ing time code, the red TACH light blinks, the green LOCK light glows steadily,

and the green Computer I/O light glows steadily as well.

Red TACH light Green LOCK light
