CLOCKWORKS FOR MAC OS 9
72

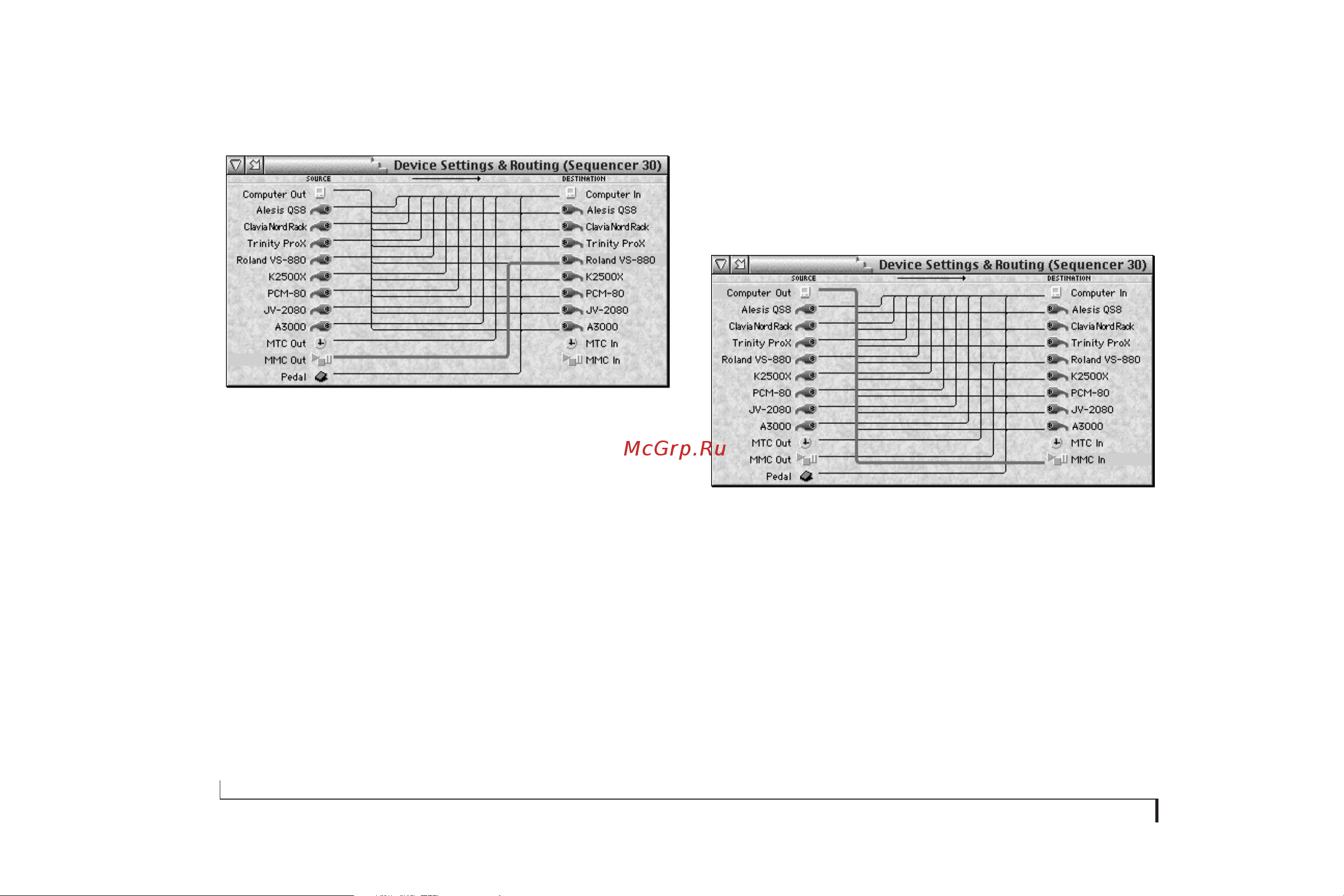

Figure 6-21: When you want to trigger another MMC device with your MOTU
MIDI interface, or if you want the interface to redistribute MMC transport
commands from your sequencer or an Alesis LRC, connect the MMC Out port to
any device you wish to control. Note that these MMC connections involve MMC
transport commands only. For MMC record functions (play-enable, punch-in,
etc.), use the regular MIDI ports and computer connections.
Routing MMC from the Mac to the interface
The MMC In port in the Device Settings & Routing
window represents MIDI Machine Control input to your
MOTU interface itself. In other words, the interface
“listens” to MMC transport commands from any devices
(or computer software) connected to this port.
For MMC transport control of the interface from the
computer, make the connection shown below in
Figure 6-22.
Figure 6-22: The selected connection shown above is required when you want
to control your MOTU interface — and any devices slaving to it — from your
sequencer or other MMC software on the computer.
Direct MMC versus redistributed MMC
When the connection shown in Figure 6-22 is made, your
MOTU interface “swallows” all MMC transport
commands sent by MMC software running on the
computer, regardless of the MMC device the messages are
