CLOCKWORKS FOR MAC OS 9
73
intended for (as determined by the MMC device ID
embedded in the messages). If you want to control a MMC
device from your computer, you have two choices:
1. bypass the interface’s MMC features,
2. or send the MMC transport commands to the MOTU
interface instead and have it redistribute them to the other
MMC device(s)
If you would like to bypass the interface and control a
MMC device directly from your computer software
(choice #1 above), remove the highlighted connection
shown in Figure 6-22.
If you plan to use choice #2 above, make the connection
shown in Figure 6-22, and also make connection shown in
Figure 6-21 (which routes your MOTU interface’s MMC
Out port to the other MMC device).
Connecting an MMC controller
If you would like to control your MOTU interface from a
MMC controller connected to one of its MIDI inputs,
connect the device’s input cable to the MMC In port as
demonstrated below.

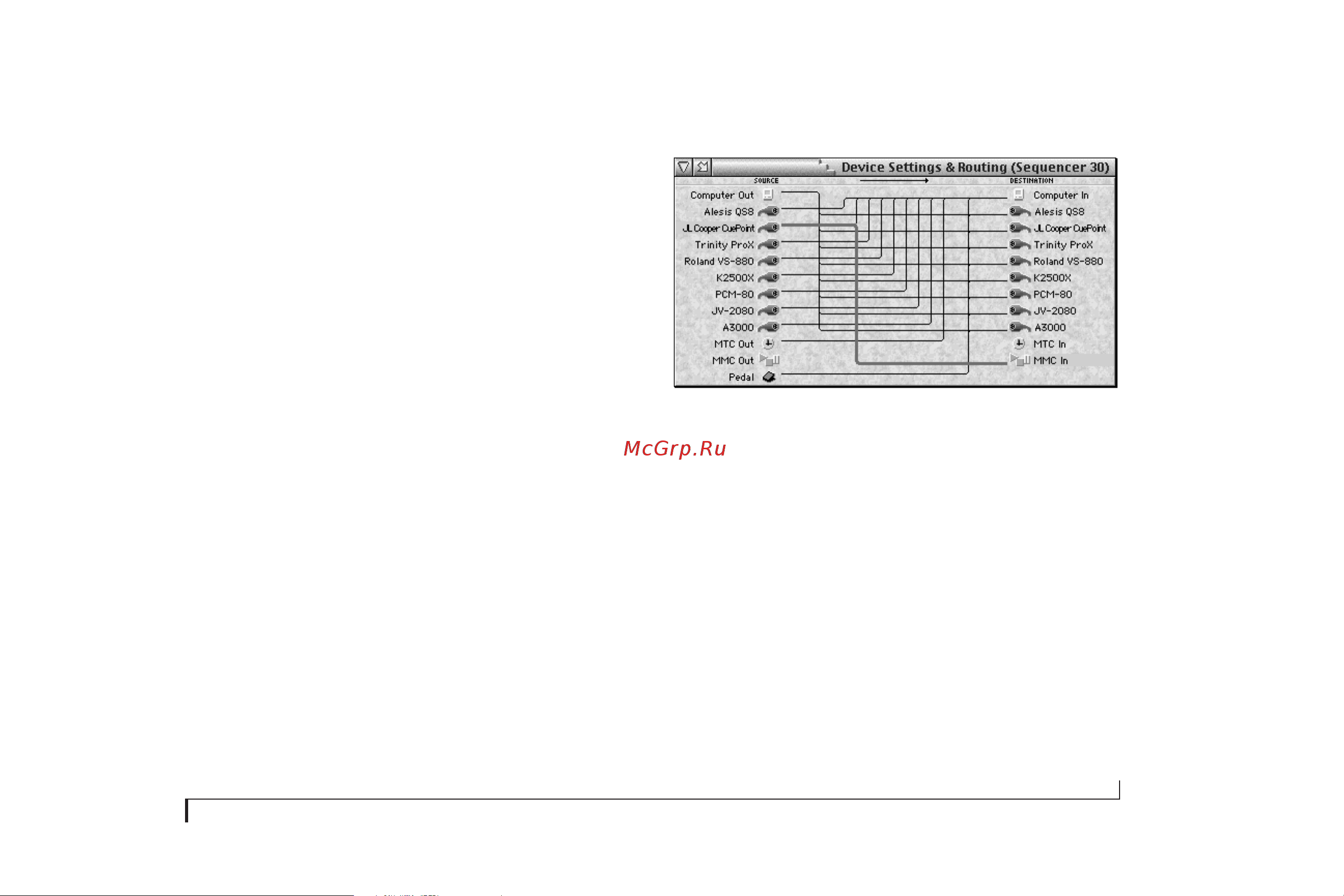

Figure 6-23: To control your MOTU interface from a MMC controller such as
JLCooper’s CuePoint, connect it to the MMC In port.
