CLOCKWORKS FOR MAC OS 9
88
The sync status area of the SMPTE Reader can also be
opened as a separate window by clicking the question
mark icon shown in Figure 6-38.

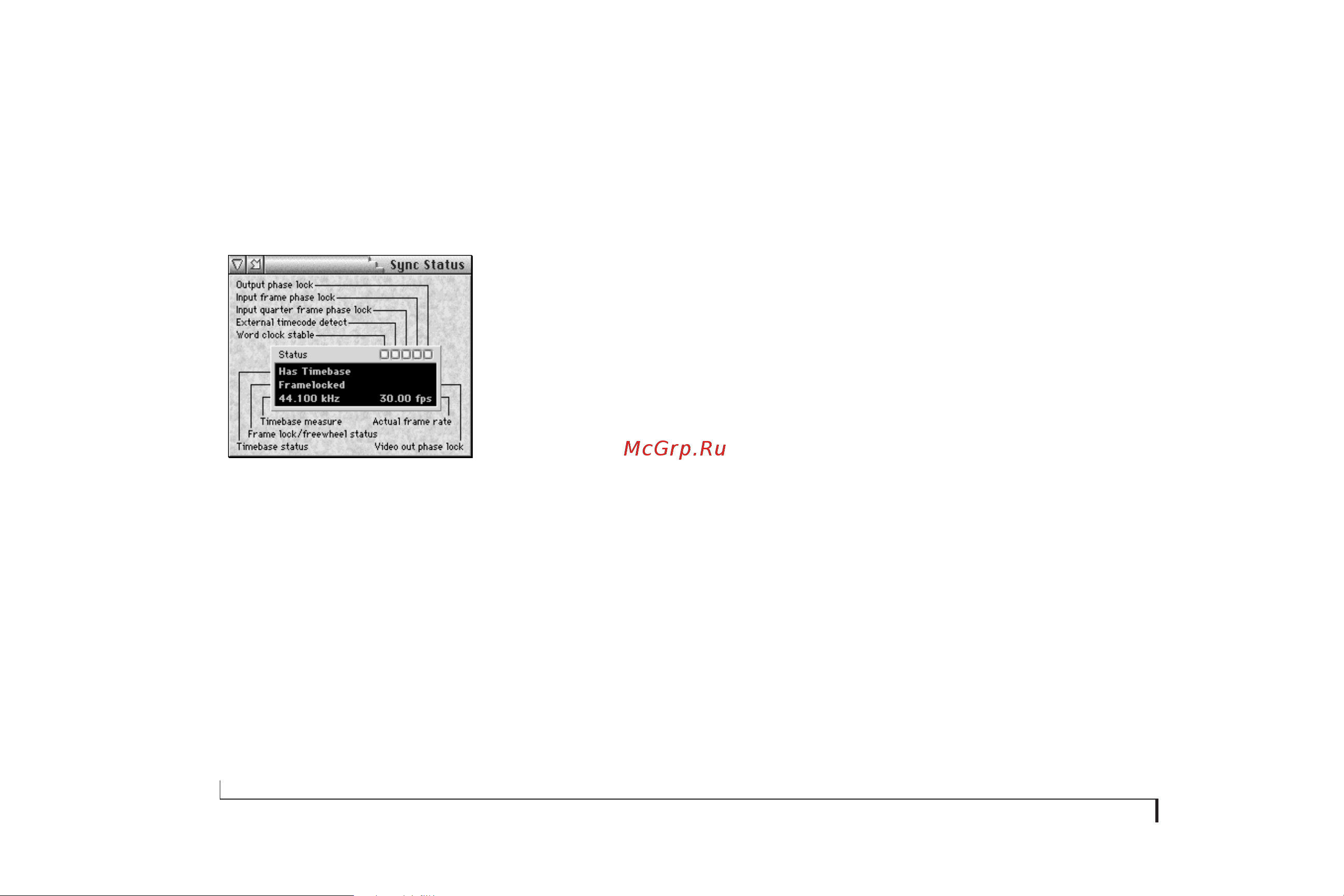

Figure 6-39: To open the Sync Status window, click the question mark icon
shown in Figure 6-38.
Time base status
The time base status readout tells you whether or not your
MOTU interface is currently locked to a time base. The
terms you will see here are:
■ Needs Timebase
■ Has Timebase
■ Getting Timebase
Needs Timebase
This status indicator means that your MOTU interface is
waiting to receive incoming signal from an external time
base source from which it will derive a time base. When it
successfully achieves lockup, it then displays Has
Timebase.
Has Timebase
This status indicator means that your MOTU interface has
established a stable time base. You’ll see this indicator
when one of the following is true:
■ your MOTU interface is in Internal mode
■ your MOTU interface is set to receive external sync
(MTC, LTC, word clock, etc.) and it has successfully
achieved lockup with the external sync source.
Getting Time base
This status indicator is displayed briefly while your MOTU
interface is in the process of establishing lock-up to an
external time base. It is an intermediate state and you’ll
only see it briefly.
