10

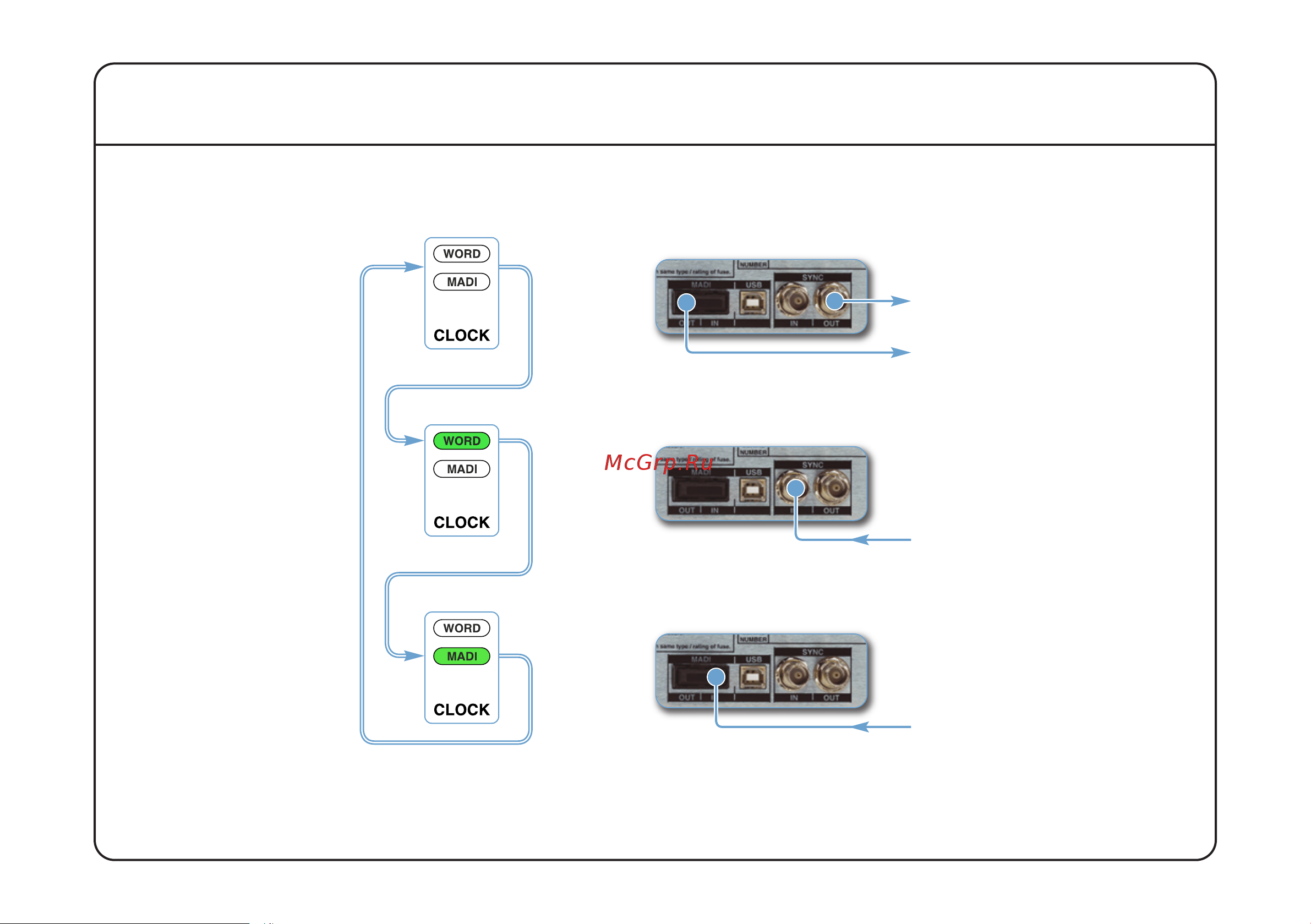

Clock Source (‘CLOCK’ Button)
The CLOCK source can be set for internal – when MX 16 will be the clock master – or for WORD or MADI, meaning
MX 16 then operates as a slave to the selected source. Press the CLOCK button to step through each mode.
• Internal
• Lock to External
Word Clock
• Lock to
MADI Stream
The relevant clock indicator illuminates (flashes) RED when MX 16 is unable to lock to the seleced source.
Mx 16 is Clock Master
Word Clock to system
(MADI [Clock] to system)
Mx 16 is a Slave
Word Clock from system
Mx 16 is a Slave
(MADI [Clock] from system)
