12
Input and Output Meters
A tri-colour LED level indicator is provided for each analogue input or output channel.
• These meters indicate: Off < –75dB FS
GREEN > –75dB FS
AMBER > –3dB FS
RED > –0.5dB FS
Diagnostics

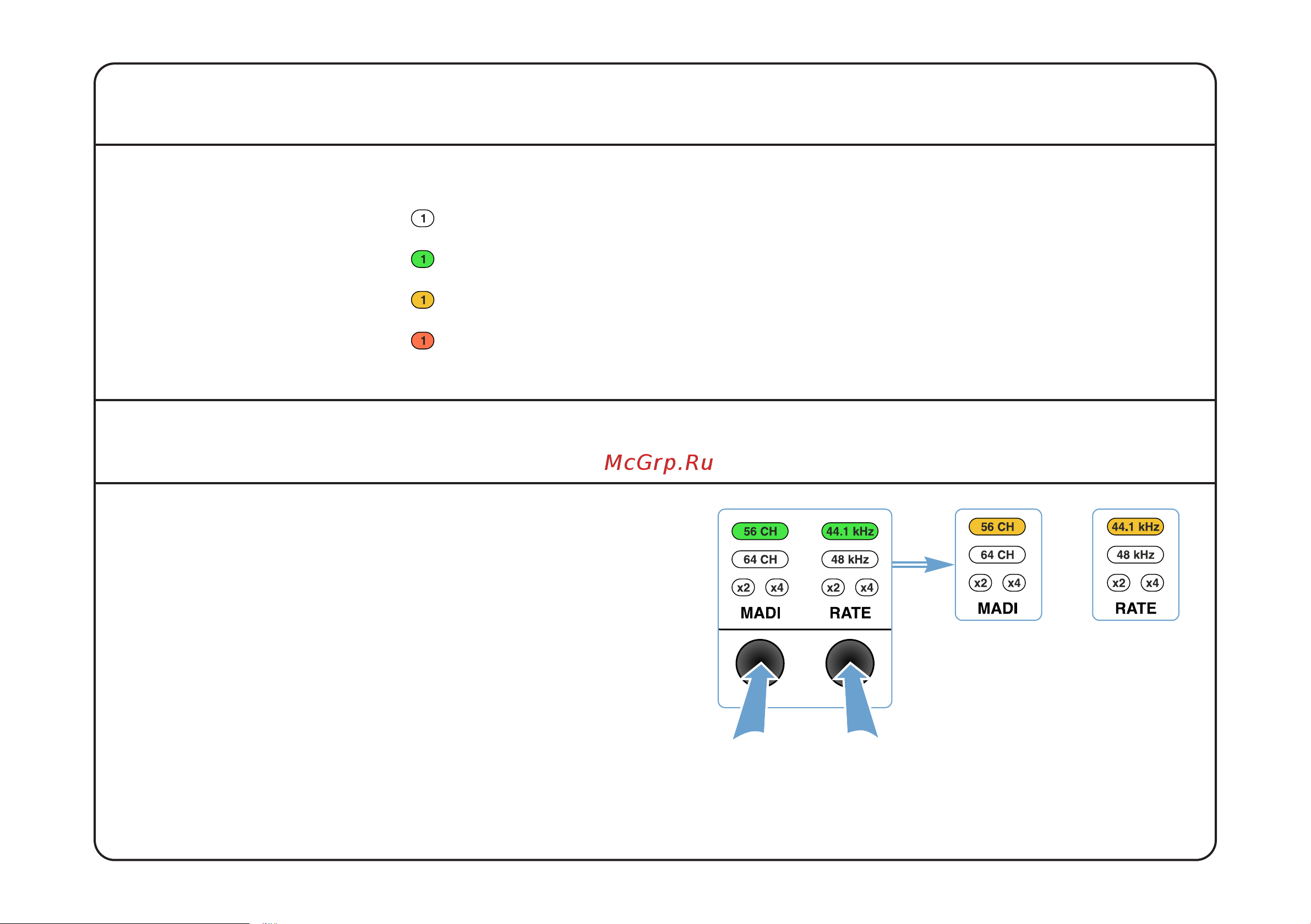

To help diagnose interface issues, MX 16 can temporarily
display the recovered MADI frame format and the measured
sample rate. This is achieved by pressing and holding both the
MADI and the RATE buttons.
• Whilst these two buttons are pressed the LED displays above
the buttons will, if a MADI stream is present, flash to indicate
the format and rate that MX 16 has discovered
(56 channel
at 44.1kHz shown opposite)
.
&
~2sec
Recovered
MADI Mode
Measured
MADI Rate
