SOLID STATE LOGIC Alpha Link MX 16-4 IO Bundle [19/52] Madi loop through
![SOLID STATE LOGIC Alpha Link MX 16-4 IO Bundle [19/52] Madi loop through](/views2/2007975/page19/bg13.png)
13
EN
DE
ES
FR
IT
JP

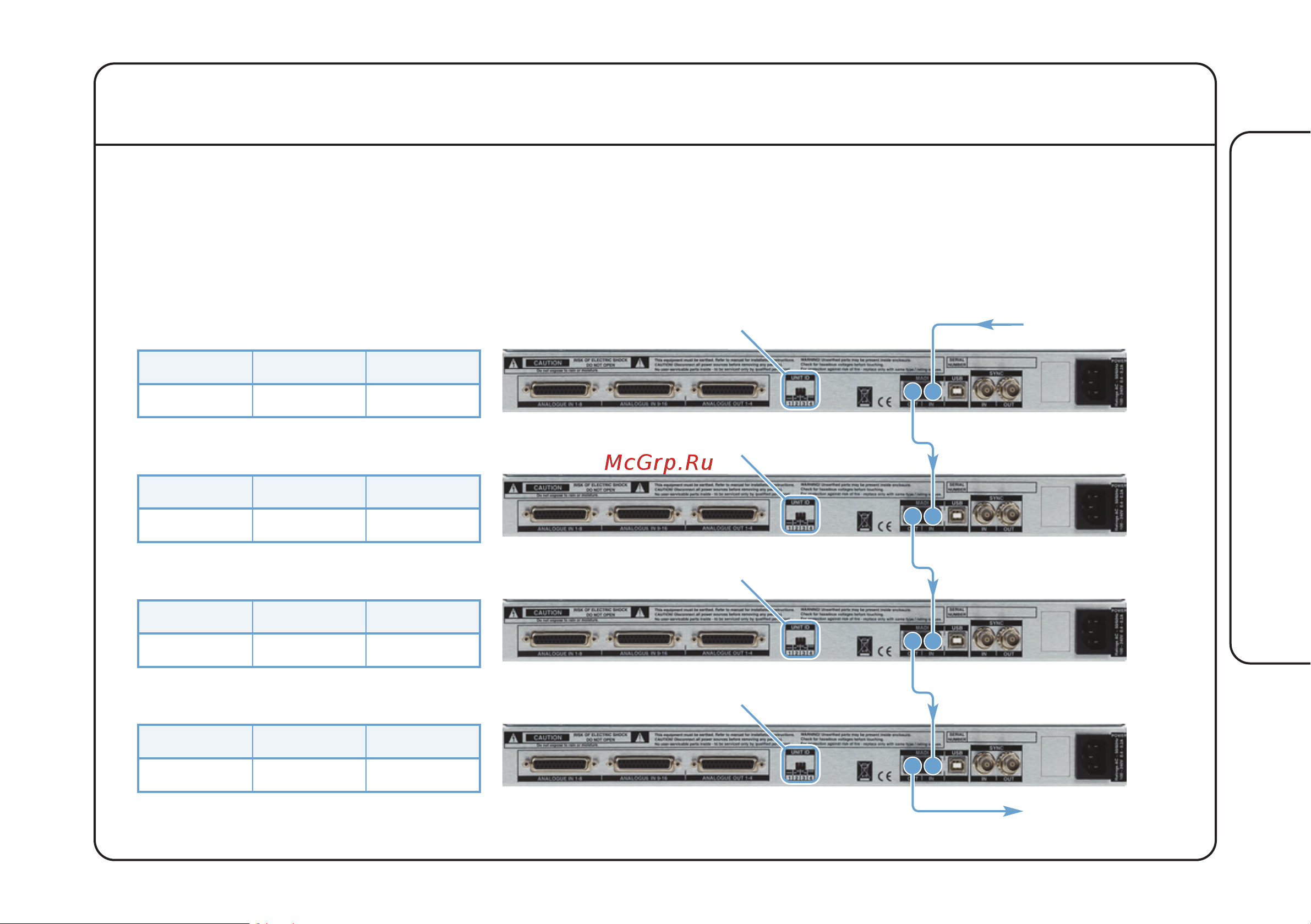

MADI Loop-Through
To maximise use of the MADI stream multiple MX 16 units may be cascaded together, up to a maximum of four units
(in any mix). When units are cascaded in this fashion, each unit’s I/O will appear consecutively in a block of 16 I/O
irrespective of the capability of the unit.
Where the sample rate is incompatible with the unit id. MX 16 will pass
through the MADI stream un-changed (see below).
In addition, the sample delay inherent in re-transmitting existing
MADI data is fully compensated for such that all inputs and outputs will remain coherent.
Unit ID 1 ()
Unit ID 2 (
)
Unit ID 3 (
)
Unit ID 4 ()
MADI stream
from system
MADI stream
back to system
Unit 1
Unit 2
Unit 3
Unit 4
Fs 2Fs 4Fs
1 ~ 16 1 ~ 16 1 ~ 16
Fs 2Fs 4Fs
17 ~ 32 17 ~ 32 –
Fs 2Fs 4Fs
32 ~ 48 – –
Fs 2Fs 4Fs
49 ~ 64 – –
