SOLID STATE LOGIC Alpha Link MX 16-4 IO Bundle [42/52] Switch interruttori
![SOLID STATE LOGIC Alpha Link MX 16-4 IO Bundle [42/52] Switch interruttori](/views2/2007975/page42/bg2a.png)
36

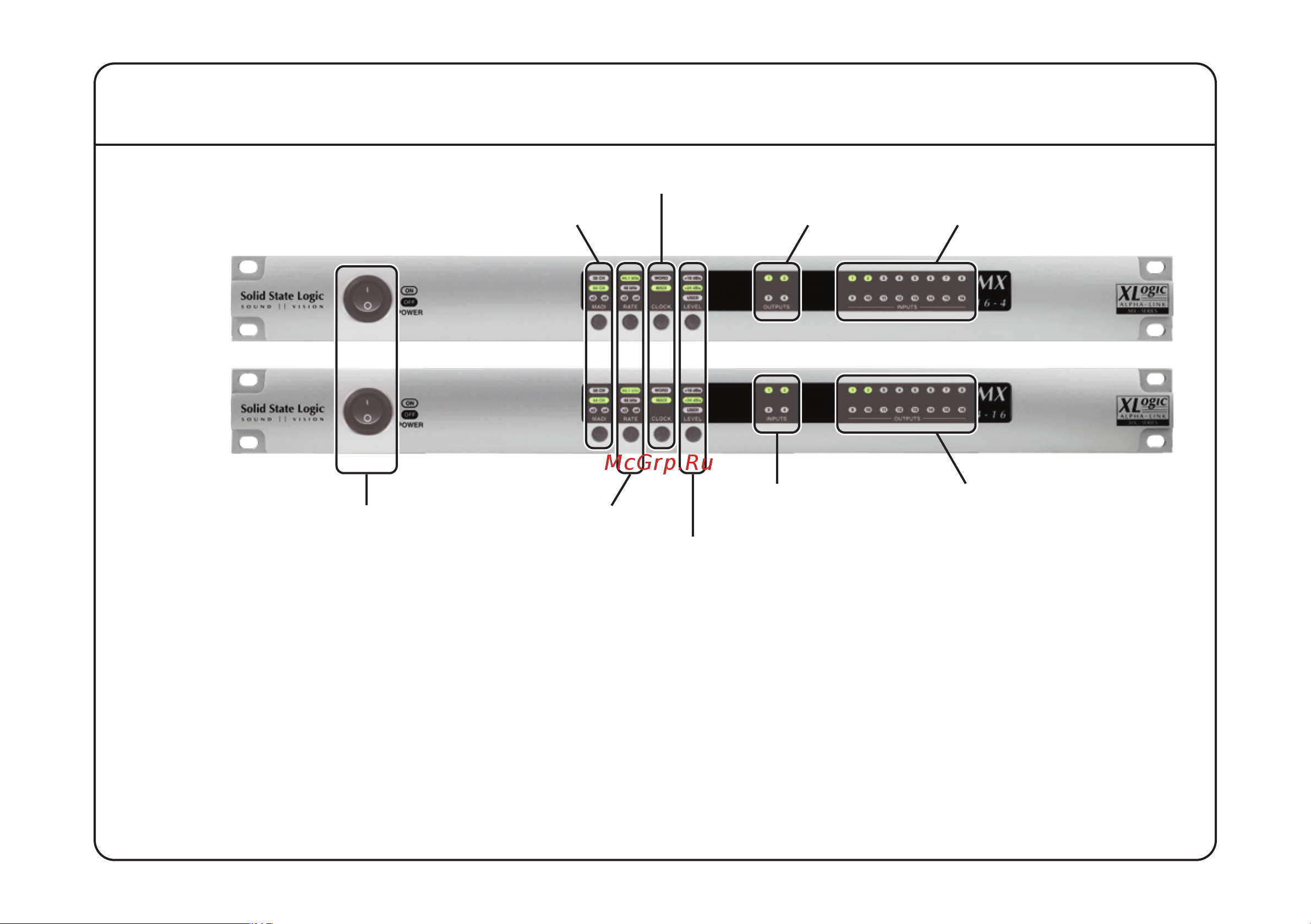

Pannello frontale
Switch/Interruttori
Power: Trasmette energia all’unità MX 16.
Modalità MADI: Stabilisce/indica il numero dei canali MADI e del frame pattern per allinearli al sistema connesso.
Frequenza campione: Stabilisce/indica la frequenza campione per adattarla al sistema connesso.
Sorgente di clock: Seleziona la sorgente di clock richiesta. Fonti adatte sono MADI, Wordclock esterno o interno.
Livello analogico: Seleziona tra 0dB FS = +24dBu o livelli determinati dall’utente compresi tra +14dBu e +22dBu.
Misuratori audio
in uscita
Interruttore di Accensione
Alpha-Link
MX 16-4
Alpha-Link
MX 4-16
Misuratori audio
in entrata
Sorgente di clock
Livello
analogico
Modalità MADI
Frequenza
campione
Misuratori audio
in uscita
Misuratori audio
in entrata
