18 BM series
5.3. Selecting Unit And Weighing Mode
Preset the sequence of displaying units and
weighing modes to fit the frequency of use. Refer to
"5.2 . Storing The Active Units".
Pressing the MODE key in the weighing mode,
the unit and weighing mode can be displayed in order.
BM-22 and BM-20 are preset units in the factory.
(Milligram), (Gram) is displayed in order.
For BM-252, BM-500, BM-300 and BM-200 are
preset units in the factory.
(Gram), (Milligram) is displayed in order.
Density mode
To use the density mode, it must be stored in the
function table as described on page 17.
Refer to "14. Density Measurement" for details
about the mode.
To select this mode, press the MODE key until
the processing indictor blinks with the unit "g"
displayed.
In weighing mode
BM-252
BM-500
BM-20 BM-300
BM-22 BM-200
Counting mode
Percent mode
Ounce (Avoir)
Troy Ounce
Metric Cara
t
Momme
Pennyweigh
t
Grain (UK)
Tael
Tola (India)
Messghal
Density mode

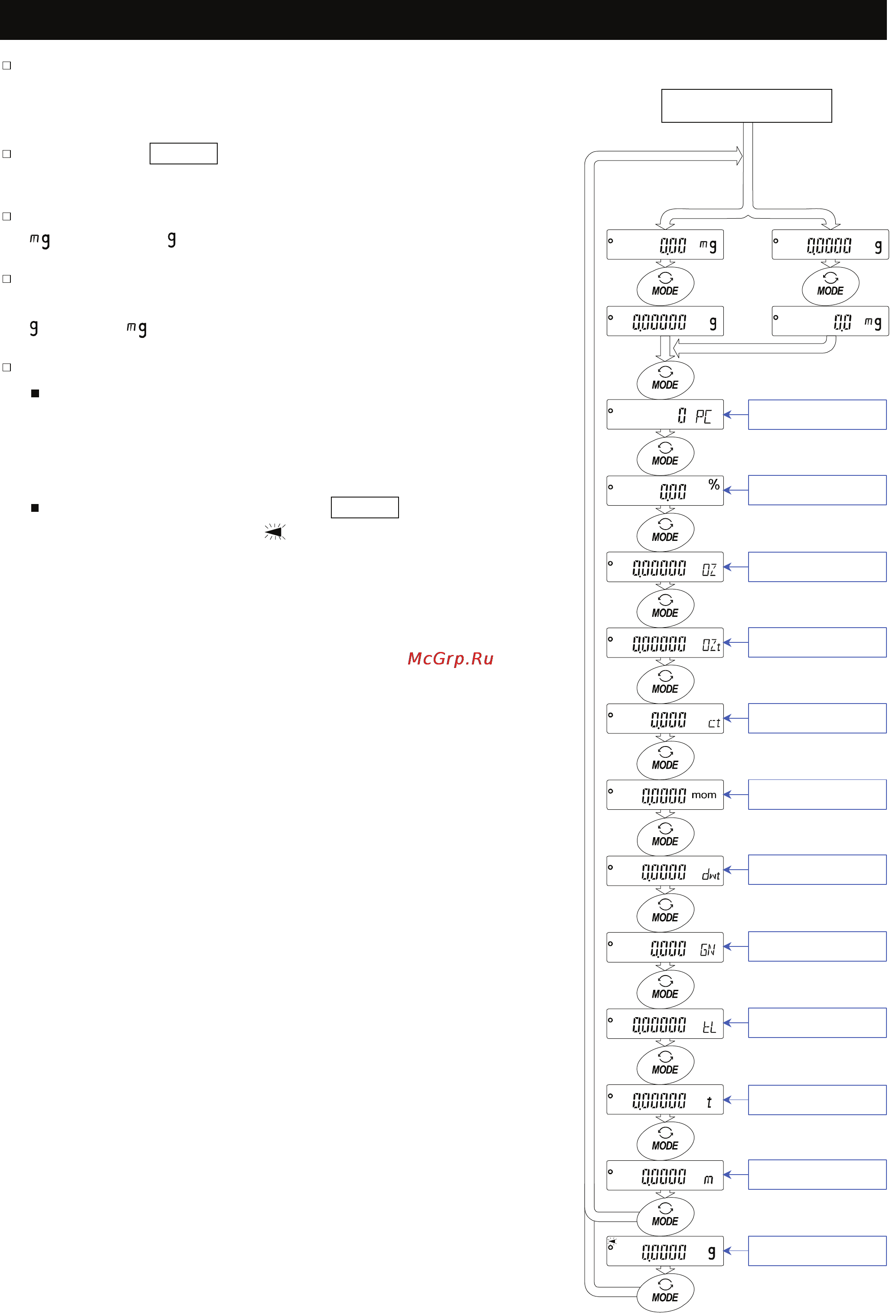

The unit sequence of
the factory settings
