62 BM series
Measuring the density ( specific gravity )
Note If the liquid temperature or the type of liquid is changed during measurement, again
input the value of the liquid density as necessary. The density display is four decimal
places. The minimum display can not be changed with the RANGE key.
The density (or specific gravity) is displayed after "Mass
measurement in air" and "Mass measurement in liquid".
The procedure of each measurements is as follows:
g : gram. : the processing indicator.
1 Enter the density mode. (g lights. blinks.)
Place nothing on both pan and press the RE-ZERO key
to display zero.
2 Place the sample on the pan in air. (g lights. blinks.)
If the weight value is stored or output, press the PRINT
key to store it after a stable weight value is displayed.
Press the RANGE key to decide the weight value
in air and proceed to next step.
Note If negative value or e (out of range) is displayed,
the RANGE key is inactive.
3 Move the sample to the pan in liquid. (g lights. lights.)
If the weight value is stored or output, press the PRINT
key to store it after a stable weight value is displayed.
Press the RANGE key to decide the weight value in
liquid and proceed to next step.
Note If e (out of range) is displayed, the RANGE key
is inactive.
4 If the density value is stored or output, press the
PRINT
key to store it. (Unit : . g turns off. lights.)
Press the RANGE key to measure another sample
and proceed to step 2.
5 If the liquid temperature or the type of liquid is changed
during measurement, input again the value of the liquid
density as necessary.
6 Press the MODE key to proceed to other modes.

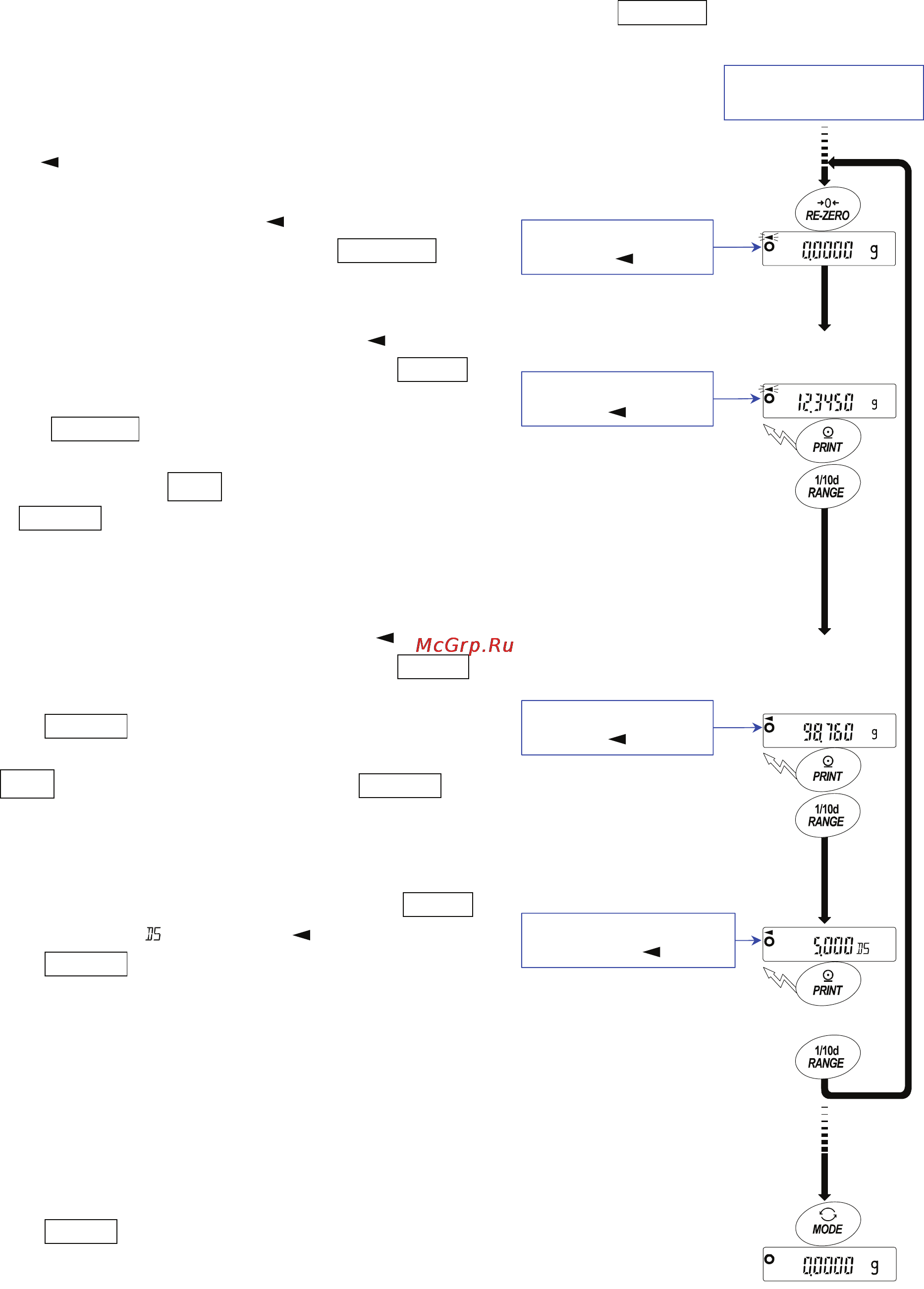

From "Entering the
density of a liquid"
Place sample on
the pan in air
Move sample from
the pan in air to the
pan in liquid
Remove sampl
e
Output or stor
e
Output or stor
e
Output or stor
e
Weighing in air.
g lights. blinks.
Weighing in air.
g lights. blinks.
Weighing in liquid.
g lights. lights.
Density display.
g turns off. lights.
