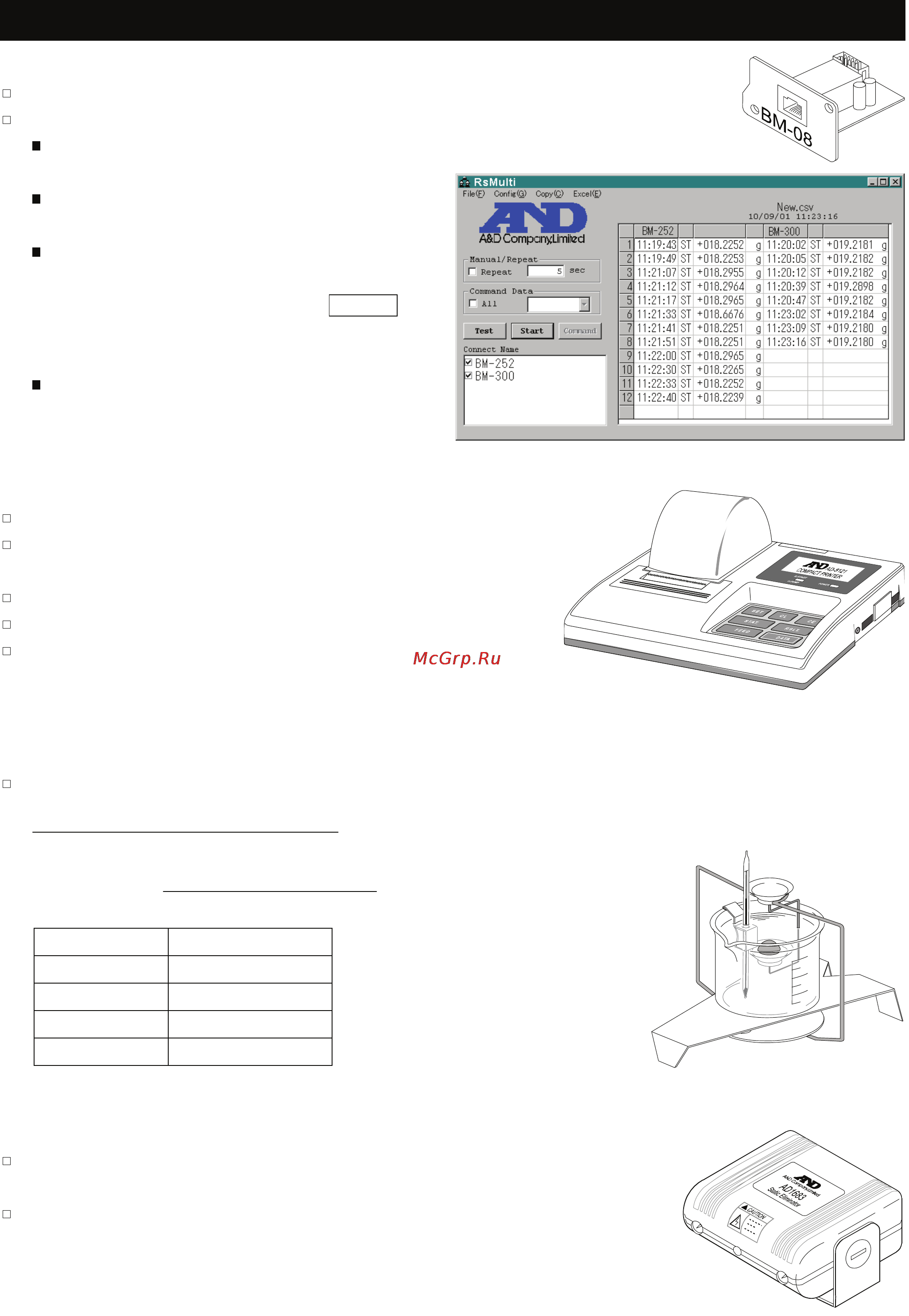

78 BM series
17.2. Options And Peripheral Equipment
GH-08 Ethernet Interface
The interface to connect the balance to a LAN.
Accessory: The "WinCT-Plus" data communication software.
The software can acquire data from
multiple balances connected to a LAN.
The software can control these
balances with commands.
The software can acquire data
transmitted from balances.
Example: When pressing the PRINT
key of the balance, data is output and
is acquired by the computer.
The stored data can be used with
Microsoft EXCEL (if installed).
AD-8121B Printer
Compact dot-matrix printer
Statistical function, clock and calendar function, interval print
function, graphic print function, dump print mode
5 x 7 dots, 16 characters per line
Print paper (AX-PP143, 45 (W) x 50 (L) mm , ø65 mm)
AC adapter or alkaline battery
AD-1653 Density Determination Kit
Cautions
The BM-20 and BM-22 can not use this kit.
Example
Temperature Water density
0°C 0.99984 g/cm
3
10°C 0.99970 g/cm
3
20°C 0.99820 g/cm
3
30°C 0.99565 g/cm
3
AD-1683 DC Static Eliminator
The eliminator is able to dissipate static electricity on
a charged sample.
The eliminator does not use a ventilator and can be
used in precision powder weighting.
Weigh in air
Weigh in water - Weigh in the air
x water density = sample density
10.0000 g
10.0000 g － 9.5334 g
x 0.9970 g/cm
3
= 21.4 g/cm
3
