BM series 31
8.5. Calibration Using An External Weight
This function calibrates the balance using an external weight.
1 Connect the AC adapter and warm up the balance for at
least one hour with nothing on the weighing pan.
2 Press and hold the CAL key until Calout is
displayed, then release the key.
3 When displaying Cal 0 , proceed as follows:
If you want to change the calibration mass, press
the RANGE key and proceed to step 4.
If you use the calibration mass value stored in
the balance, proceed to step 5.
4 Specify the calibration mass value as follows:
RANGE key
..........
The key to switch blinking figures.
RE-ZERO (+)key
.....
The keys to select the calibration mass or
adjust the mass value. Refer to page 28.
PRINT key
............
The key to store the new mass value.
Even if the AC adapter is removed, the
data is maintained in non-volatile memory.
CAL key
...............
The key to cancel the operation and return
to Cal 0 .
5 Confirm that there is nothing on the pan and press the
PRINT key. The balance measures the zero point.
Do not allow vibration or drafts to affect the balance.
The balance displays the calibration mass value.
6 Place the displayed calibration weight on the pan and press the
PRINT
key. The balance measures the calibration mass. Do not
allow vibration or drafts to affect the balance.
7
end is displayed.
Remove the weight from the pan.
8 If GLP output is set, glp is displayed and the calibration
report is output and stored. Refer to "GLP output (info)" and
"Data memory (data)" of the function table, "11.2. GLP
Report" and "12. Data Memory".
9 The balance will automatically return to the weighing mode.
10 Place the calibration weight on the pan and confirm that the value
displayed is correct. If it is not within the range, check the ambient
conditions such as breeze and vibration also check the weighing
pan. Then, repeat steps 1 to 10.
MODE (-)ke
y
Press and hold
Releas
e

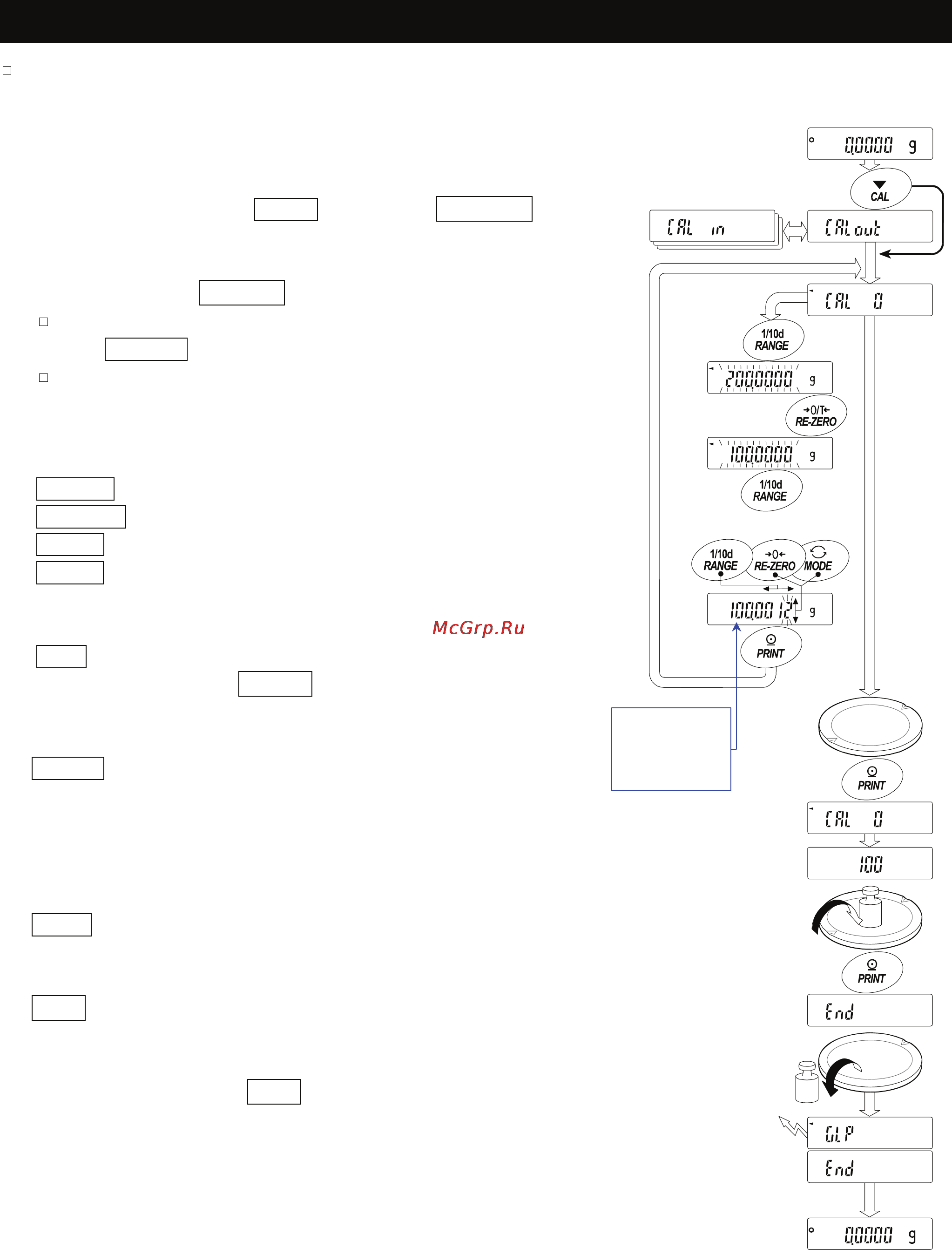

Select a type
Place the weight
Remove the weight
Specify detail of value
GLP output
E
x
ample:
New value
100.0012 g
New mass
value
