36 BM series
10. Function Table
The function table reads or rewrites the parameters that are stored in the balance.
These parameters are maintained in non-volatile memory, even if the AC adapter is removed.
The function table menu consists of two layers. The first layer is the "Class" and the second layer
is the "Item".

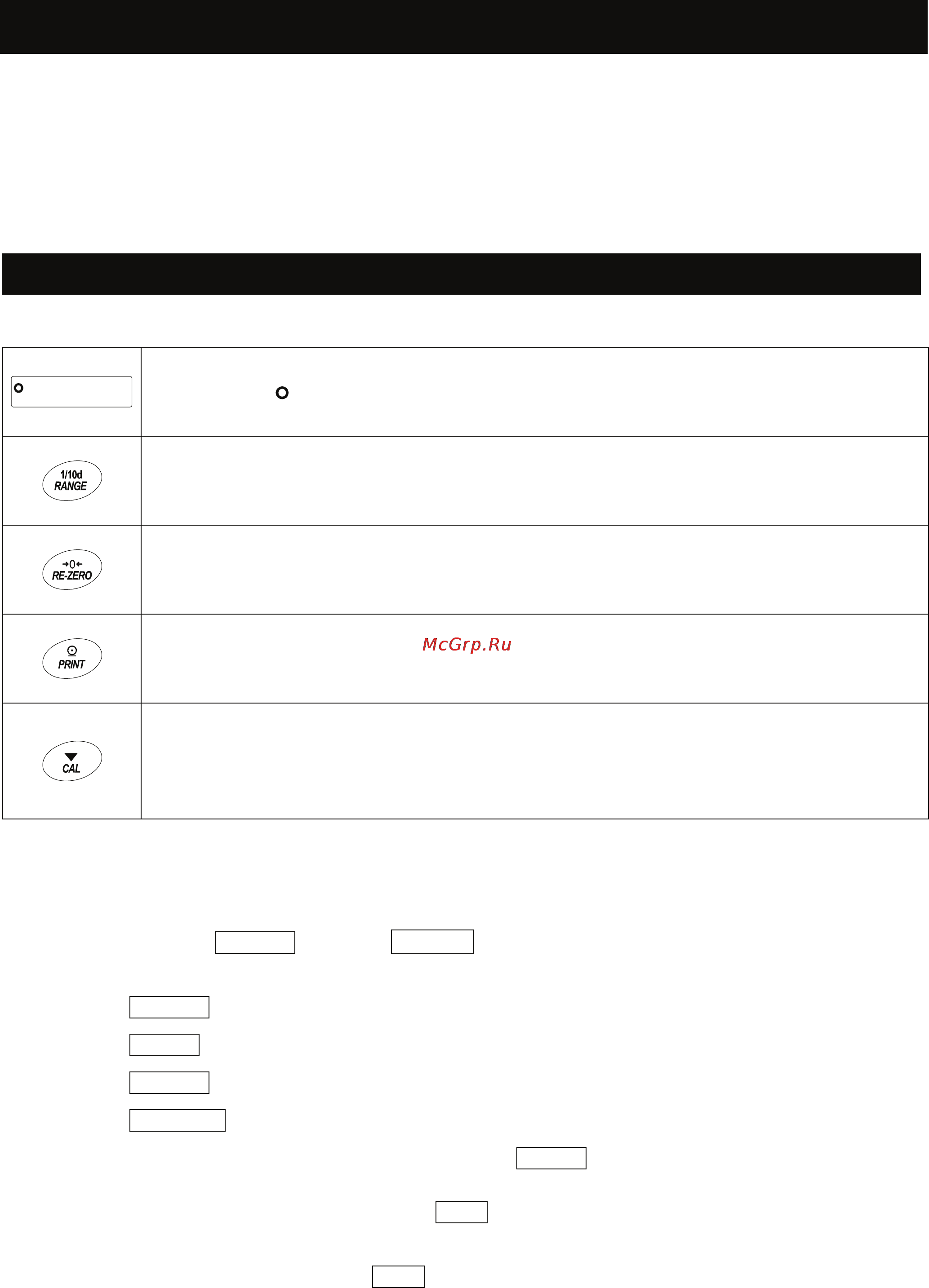

10.1. Setting The Function Table
Display symbol and keys
The symbol "
" shows effective parameter.
When pressing and holding the key in the weighing mode, the balance enters
the function table mode.
The key to select the class or item in the function table mode.
The key to change the parameter.
When displaying a class, the key enters an item in the class.
When displaying an item, the key stores the new parameter and displays the
next class.
When displaying an item, the key cancels the new parameter and displays the
next class.
When displaying a class, the key exits the function table mode and returns to the
weighing mode.
Setting Procedure
1 Press and hold the RANGE key until ba5fnc of the function table is displayed in the weighing
mode, then release the key
2 Press the RANGE key to select a class.
3 Press the PRINT key to enter the class
4 Press the RANGE key to select a item.
5 Press the RE-ZERO key to select a parameter for the selected item.
6 If storing parameters of the selected class, press the PRINT key.
Then the next class is displayed.
If canceling the current operation, press the CAL key. Then the next class is displayed.
7 When specifying parameters for another class, proceed to step 2.
When finishing the setting, press the CAL key to return to weighing mode.
