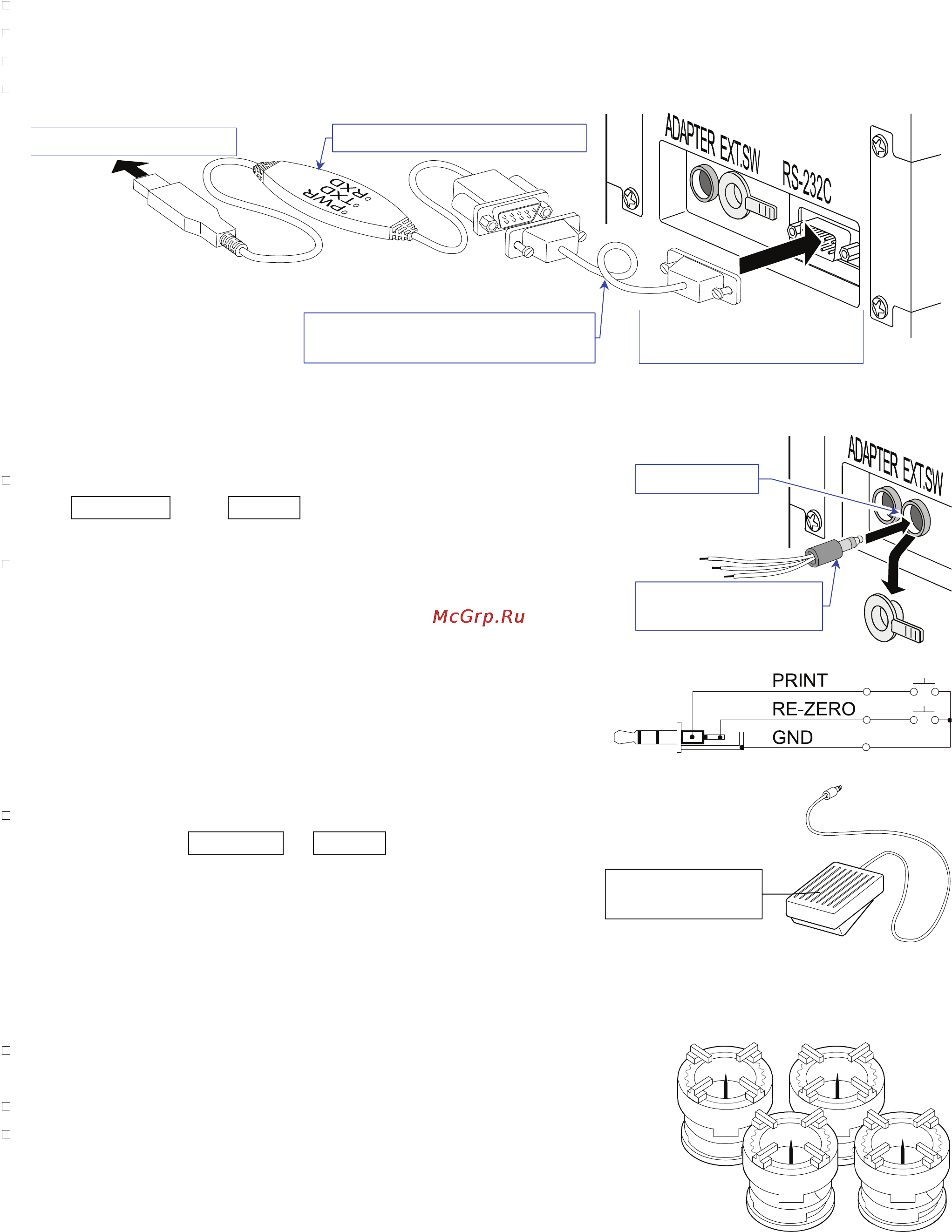

BM series 79
AX-USB-9P-EX USB Converter
Adds a COM port to a PC.
Enables bi-directional communication between the PC and the balance when a USB driver is installed.
Can use serial communication software such as WinCT on a PC without COM ports.
An RS-232C cable is provided to connect the USB converter to the balance.
AX-T-314A-S External key Plug
This plug produces the same operations as pressing
the RE-ZERO and PRINT keys. It enables remote
control of the balance using an external switch.
This operation must connect the GND line to the PRINT
or RE-ZERO line for at least 100 milliseconds.
AX-SW128 Foot switch
The switch can be used to connect the external key plug
and used to the RE-ZERO or PRINT keys.
Note When the foot switch is to be used, prepare the
AX-SW128 and AX-T-314A-S beforehand.
Electrode Unit of the DC Static Eliminator AX-BM-NEEDLESET
Use these electrode units for replacement parts of the
DC static eliminator built into the balance.
Replace all four units with new ones at the same time.
Refer to "6.5. Built-in DC Static Eliminator" for the
replacement.
Foot switch
AX-SW128
To USB port on a P
C
The RS-232
C
interface
on the balance
The USB serial converte
r
The RS-232C cable provided
(D-sub 9-pin)
External key Plug
AX
-
T
-314
A
-S
Te rm in al
Cap
