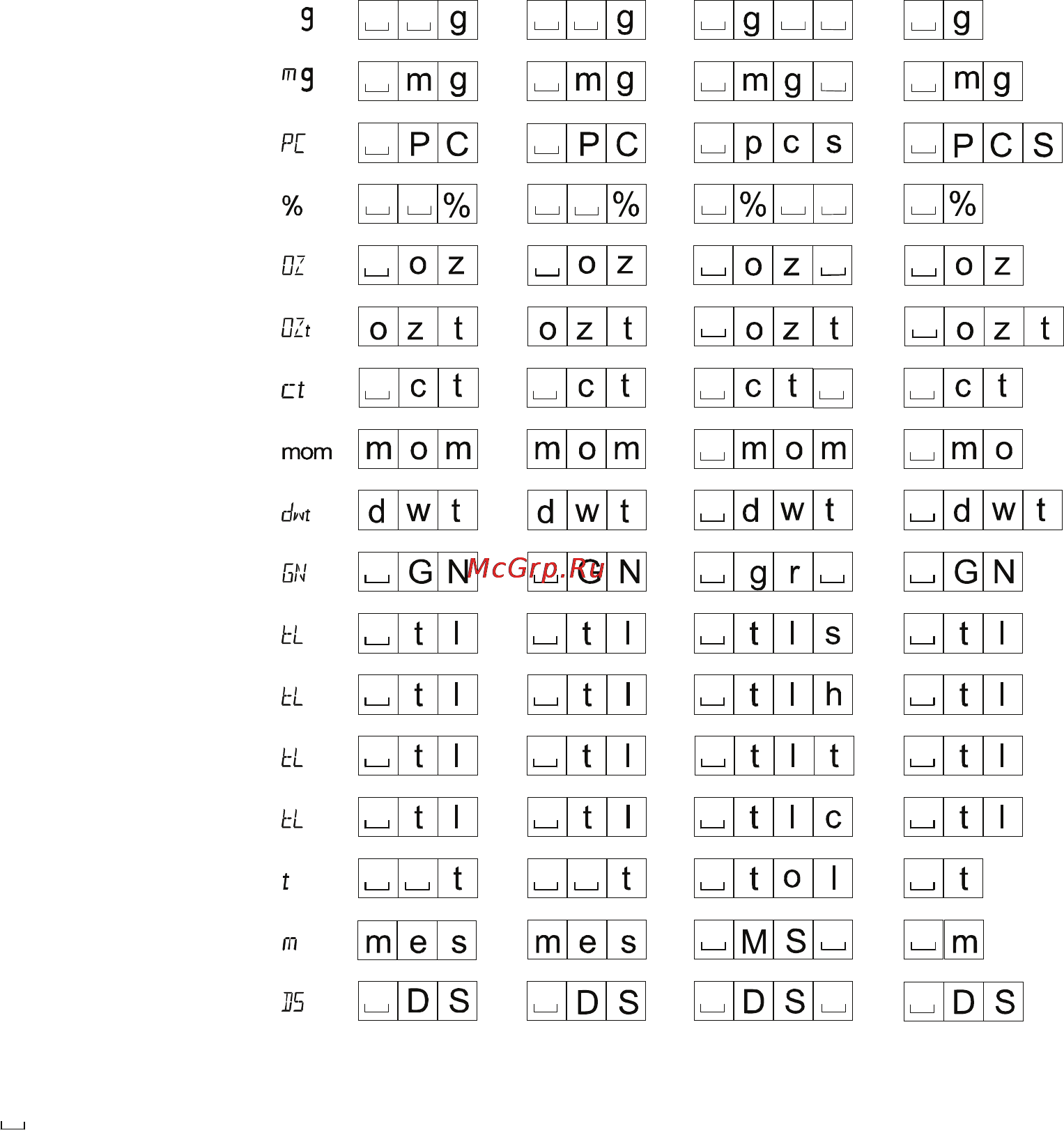

46 BM series

Units

A&D D.P. KF MT

Counting mode

Percent mode

Ounce (Avoir)

Troy Ounce

Metric Carat

Momme

Pennyweight

Grain

Tael (HK general, Singapore)

Tael (HK, jewelry)

Tael (Taiwan)

Tael (China)

Tola (India)

Messghal

Density

Space, ASCII 20h
