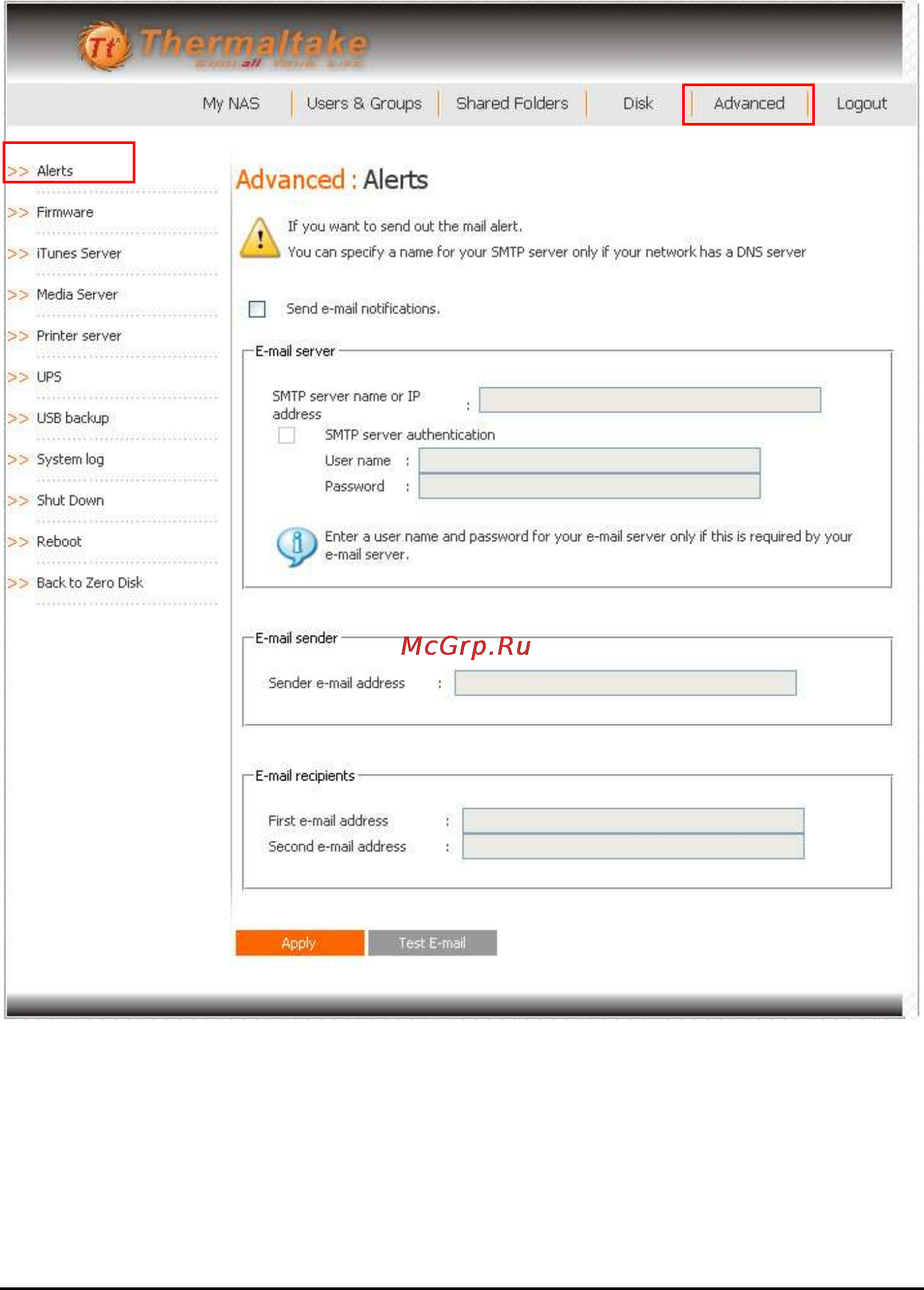

1. Click the Advanced button on the Storage System Management homepage.

The following screen appears.

2. Enter the information about your SMTP email server, sender’s email

address, and up to two email addresses that should receive the notification.
