Инструкция по эксплуатации Страница: 20

Konica Minolta CF9001 [20/126] Illustration to be provided

1-4 Printing from Windows Computers

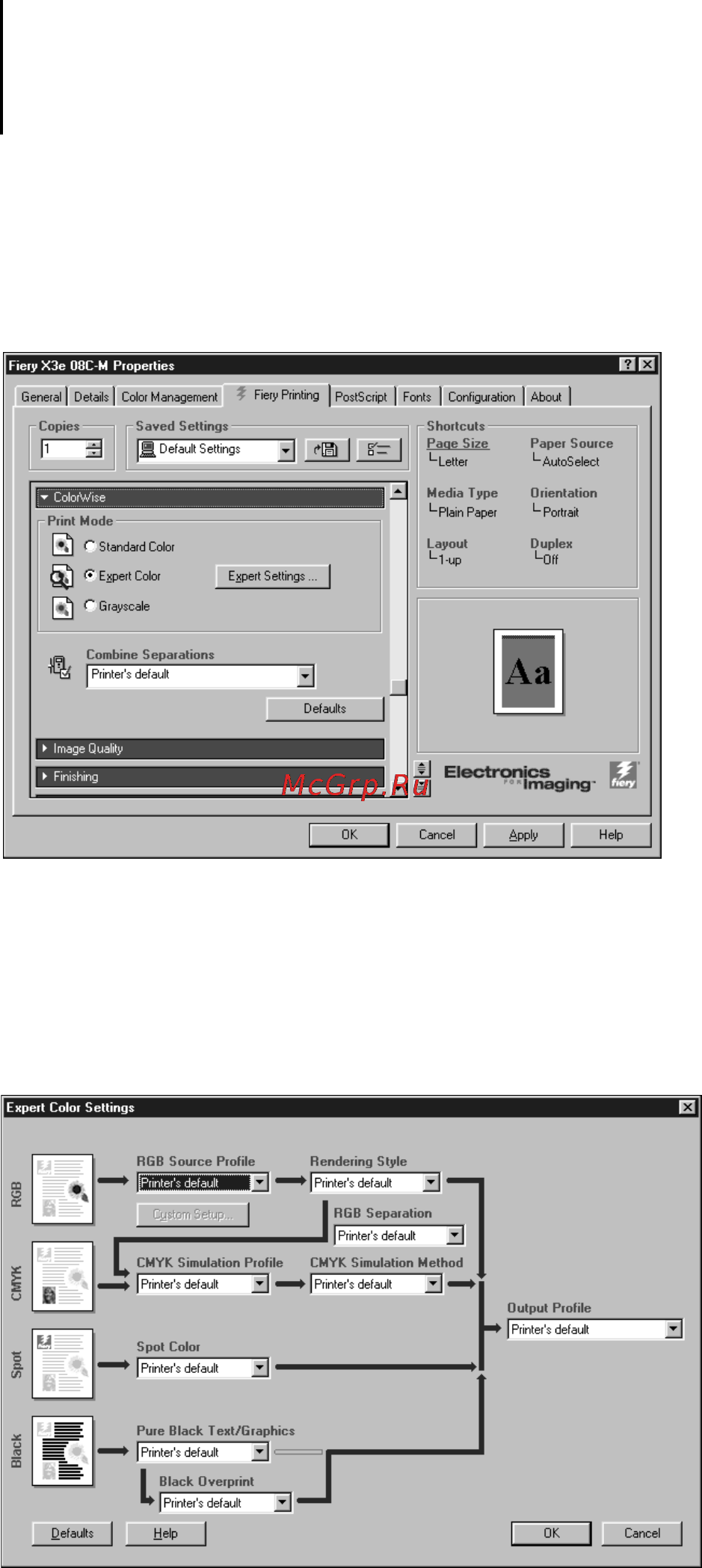

5. Click the ColorWise print option bar.

In the Print Mode area, specify the color mode for the job. If you want to use any

advanced color management features (such as Rendering Style), click Expert Settings

and proceed to step 6; otherwise, skip to step 7.

6. Specify the color setting for the print job, and click OK.

Illustration to be provided.
