1
1-19 Printing from applications

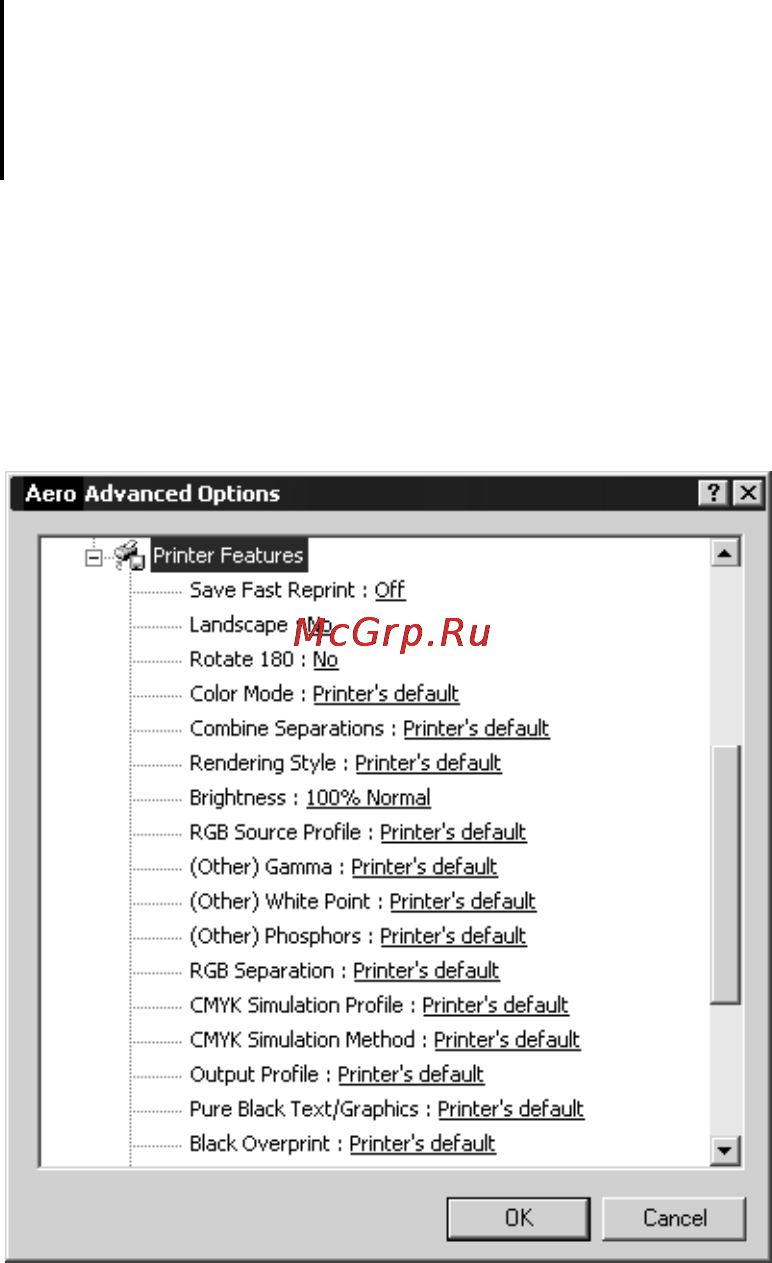

5. Scroll down to Printer Features, and select the appropriate settings for the print job.
These print options are specific to the Fiery X3e and the copier. They override settings
in Fiery X3e Printer Setup, but can be changed from Command WorkStation,
Fiery WebSpooler, or Fiery Spooler. For information about these options and
overrides, see Appendix A.
If you choose Printer’s default, the job prints according to the settings entered during
Setup, or default settings.
NOTE: As you select print options, incompatible print settings appear with a caution
icon next to their names. If you specify incompatible print settings the Incompatible
Print Settings dialog box appears. Follow the on-screen instructions to resolve the
conflict.
6. Click OK to close the Advanced Options dialog box.
7. Click OK to close the Document Properties dialog box.
8. Click OK to Print.
The job prints with the specified settings.
Illustration to be provided.
