Konica Minolta CF9001 [24/126] The printer driver is automatically conﬁgured with the saved settings

1-8 Printing from Windows Computers

TO DELETE SAVED SETTINGS

1. From the Fiery Printing tab, click Settings.

2. Select the settings you want to delete, and click Delete.

3. Click Yes to confirm deletion, and click OK.

TO MODIFY SAVED SETTINGS

1. From the Fiery Printing tab, click the Saved Settings pop-up menu.

2. Choose the settings you want to modify.

The printer driver is automatically conﬁgured with the saved settings.

3. Configure your new settings from the print option bars, and click Disk.

4. Click OK to save the modified settings.

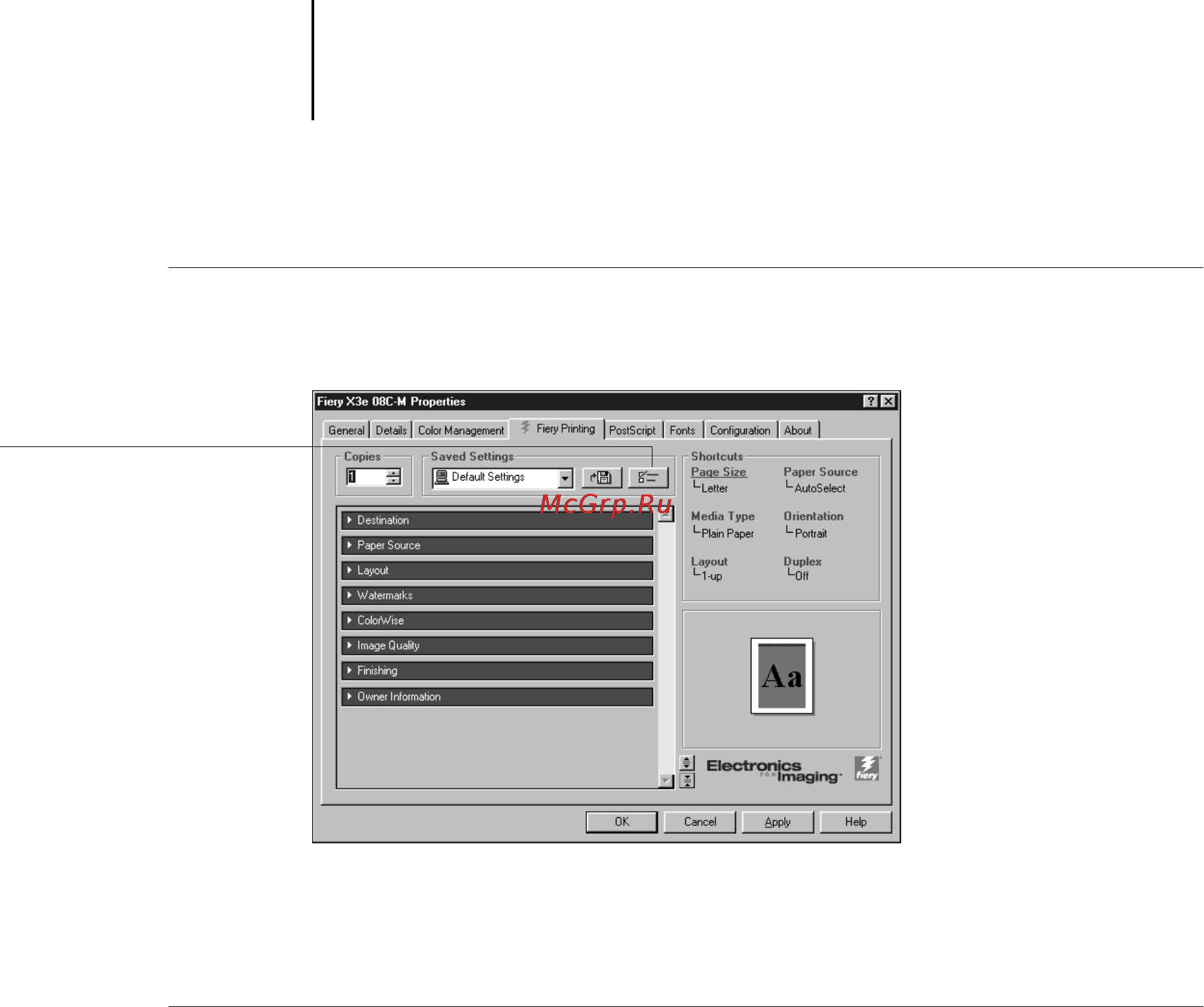

Click the Settings button
