Konica Minolta CF9001 [85/126] To exit fiery link press the alt and f4 keys windows or the command and q keys mac os

6-5 Tracking and Managing Print Jobs

NOTE: To exit Fiery Link, press the Alt and F4 keys (Windows) or the Command and

Q keys (Mac OS).

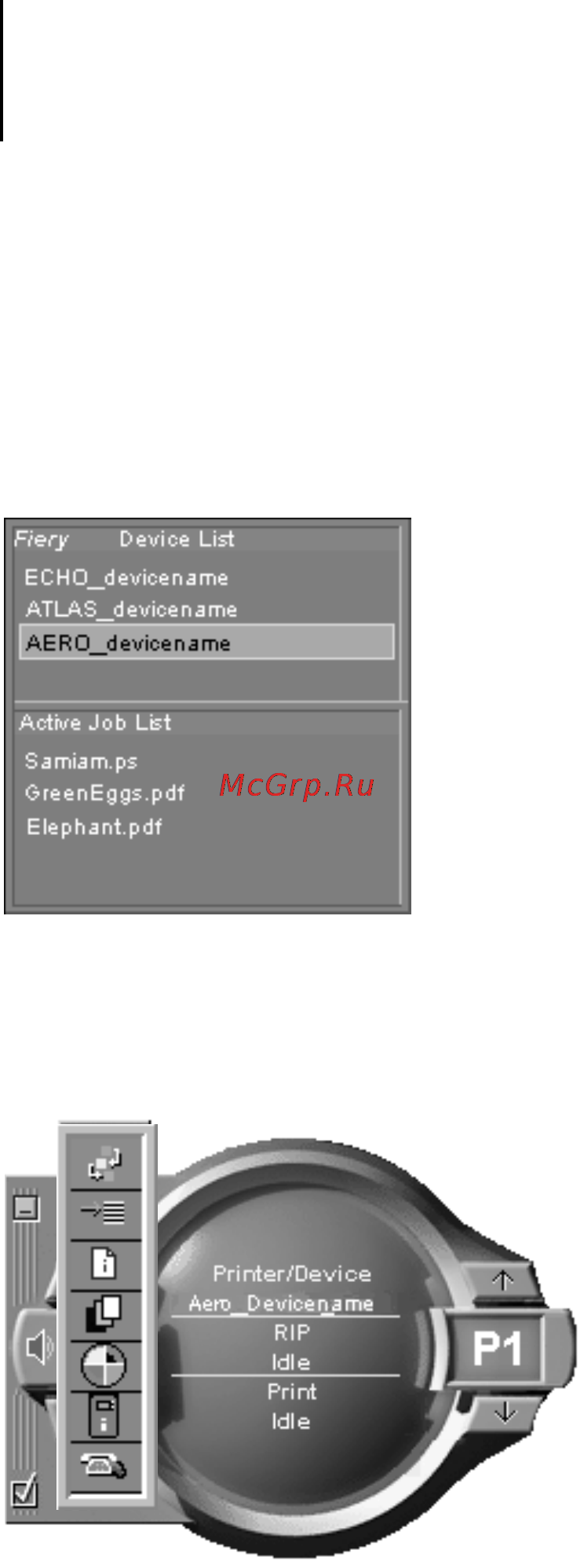

2. Click the currently selected server or print job to display the list of all connected

servers or print jobs.

3. From this list, select the Fiery X3e or the job about which you want information.

4. Click the currently selected Fiery Link tool to display a list of all the tools (as shown

below), and select a tool.
