1
1-10 Printing from Windows Computers

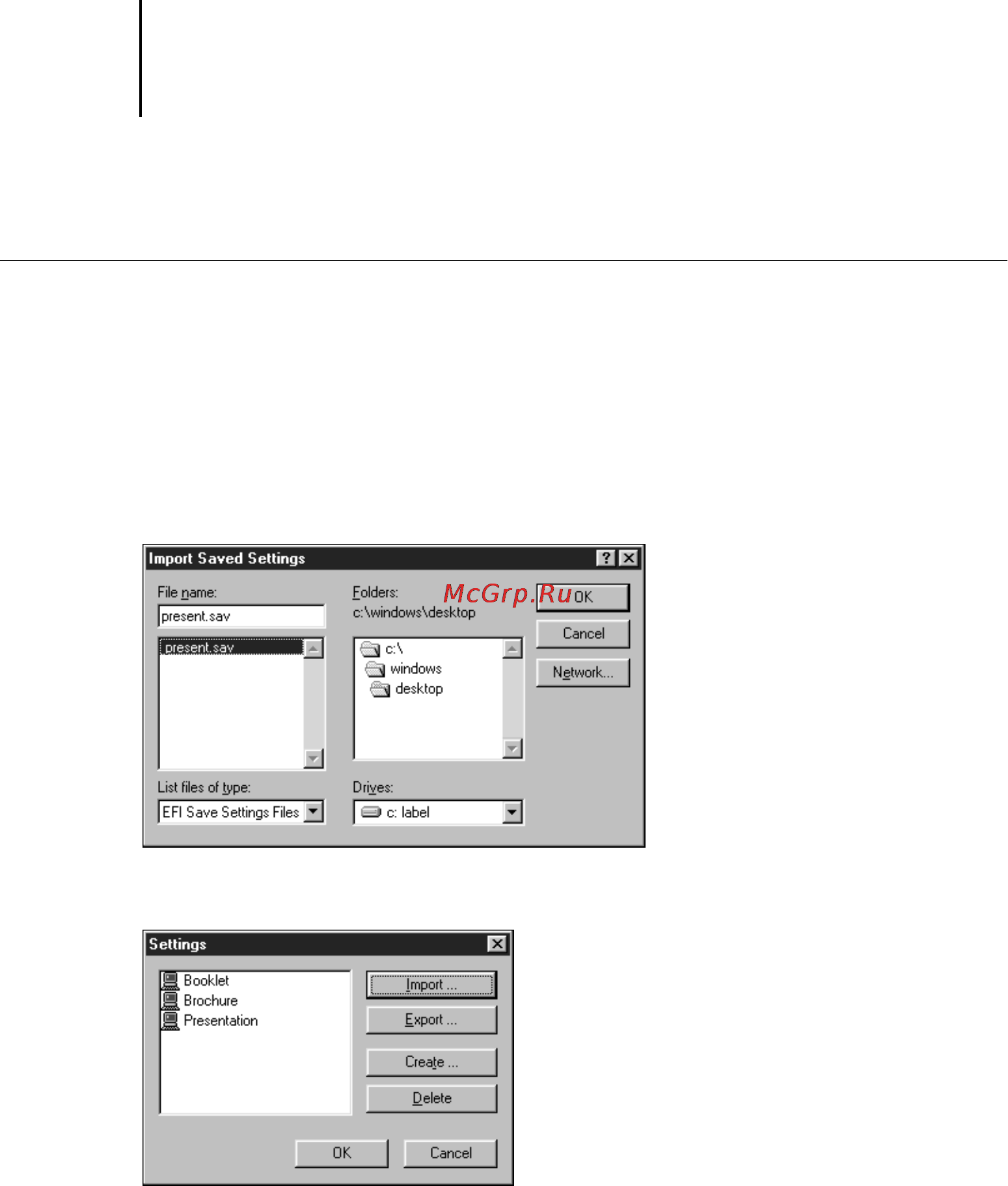

TO IMPORT SAVED SETTINGS
1. From the Fiery Printing tab, click Settings.
2. Click Import.
3. Browse to the location of the saved settings file you want to import.
4. Select the file, and click OK.
5. Click OK in the Settings dialog box.
N
OTE: When you import saved settings, they appear in the Saved Settings menu under
their Settings Name, not the file name. In the example above, the file present.sav (file
name) was imported, but it appears in the Saved Settings menu as Presentation
(Settings Name).
