2
2-4 Printing from Mac OS Computers
From the Paper Source pop-up menu, choose the paper tray for the job. For example,
you can specify that the job should be printed on pages in the MF (Manual Feed) tray.
NOTE: If paper loaded in the selected tray is a different size, orientation, and/or media
type than that of the job you are sending, the Fiery X3e displays an error message and
the job will not print. You should then load the correct paper in the selected tray or
cancel the job.
5. Choose Job Notes from the pop-up menu.
In the Notes 1 and Notes 2 areas, enter user and job identification information for
accounting purposes, or whatever information is required at your site. These notes can
be viewed by the operator at Command WorkStation, Fiery WebSpooler, or Fiery
Spooler, and will appear in the Job Log. These notes cannot be edited or erased by the
operator.
In the Instructions area, enter instructions to the operator about the job. These
instructions can be viewed by the operator at Command WorkStation,
Fiery WebSpooler, or Fiery Spooler, but do not appear in the Job Log. These
instructions can be edited by the operator.

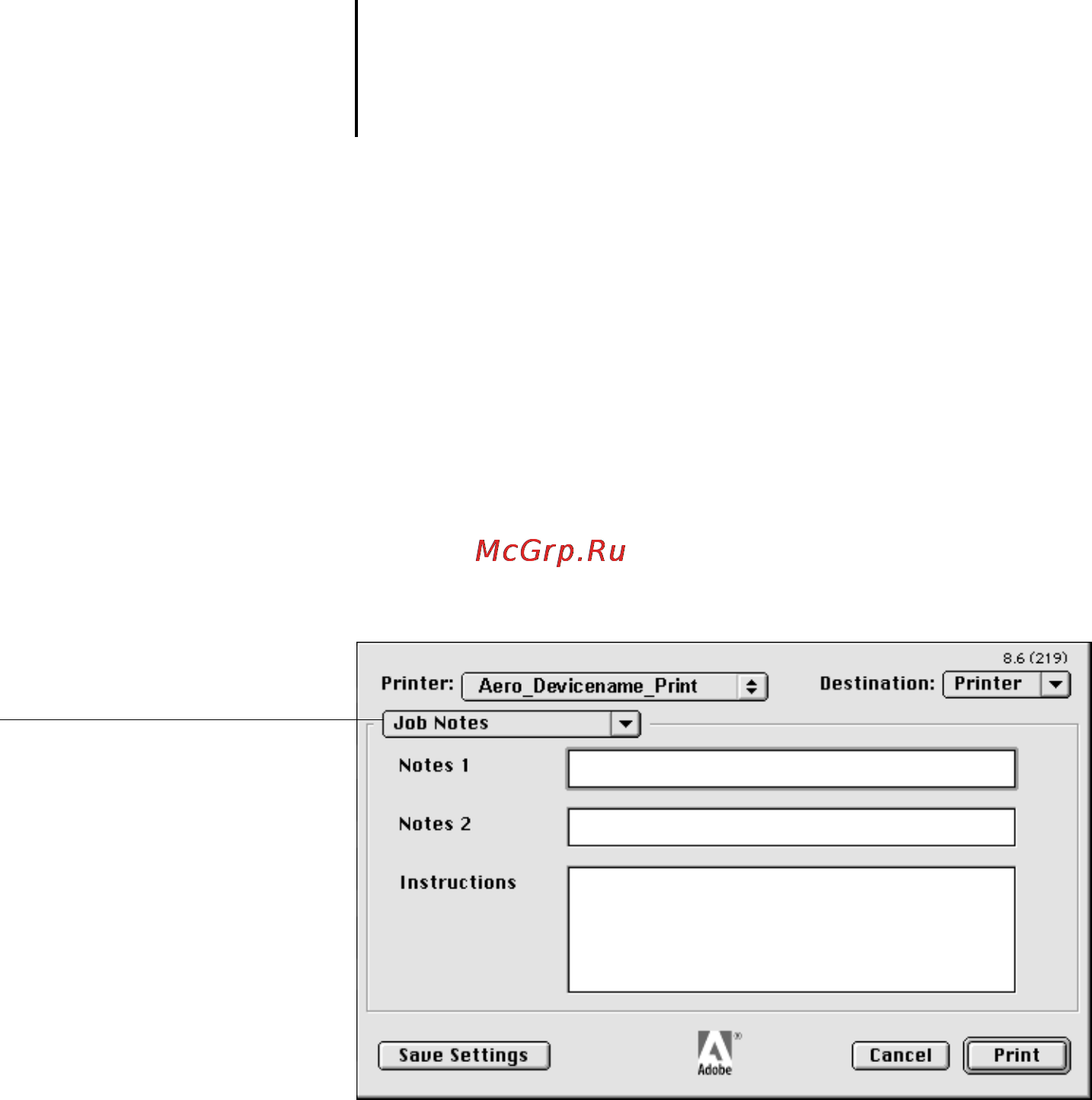

Choose Job Notes from
the pop-up menu
