4
4-8 Special Features
4. Print the variable-elements document to the Fiery X3e with the Use Master print
option set to the appropriate FreeForm Master number.
The FreeForm Master number may be one you set yourself when you sent the master-
elements document or it may be one that was assigned by the operator.
FreeForm Master numbers can be overridden from Command WorkStation, Fiery
Spooler, or Fiery WebSpooler. Check with the operator to make sure that the
FreeForm Master number you specify is the correct one for the FreeForm Master you
want to use.
If you want to check the job before it prints, instruct the operator to RIP and Hold the
job so that you can preview it from Command WorkStation, Fiery Spooler, or
Fiery WebSpooler.

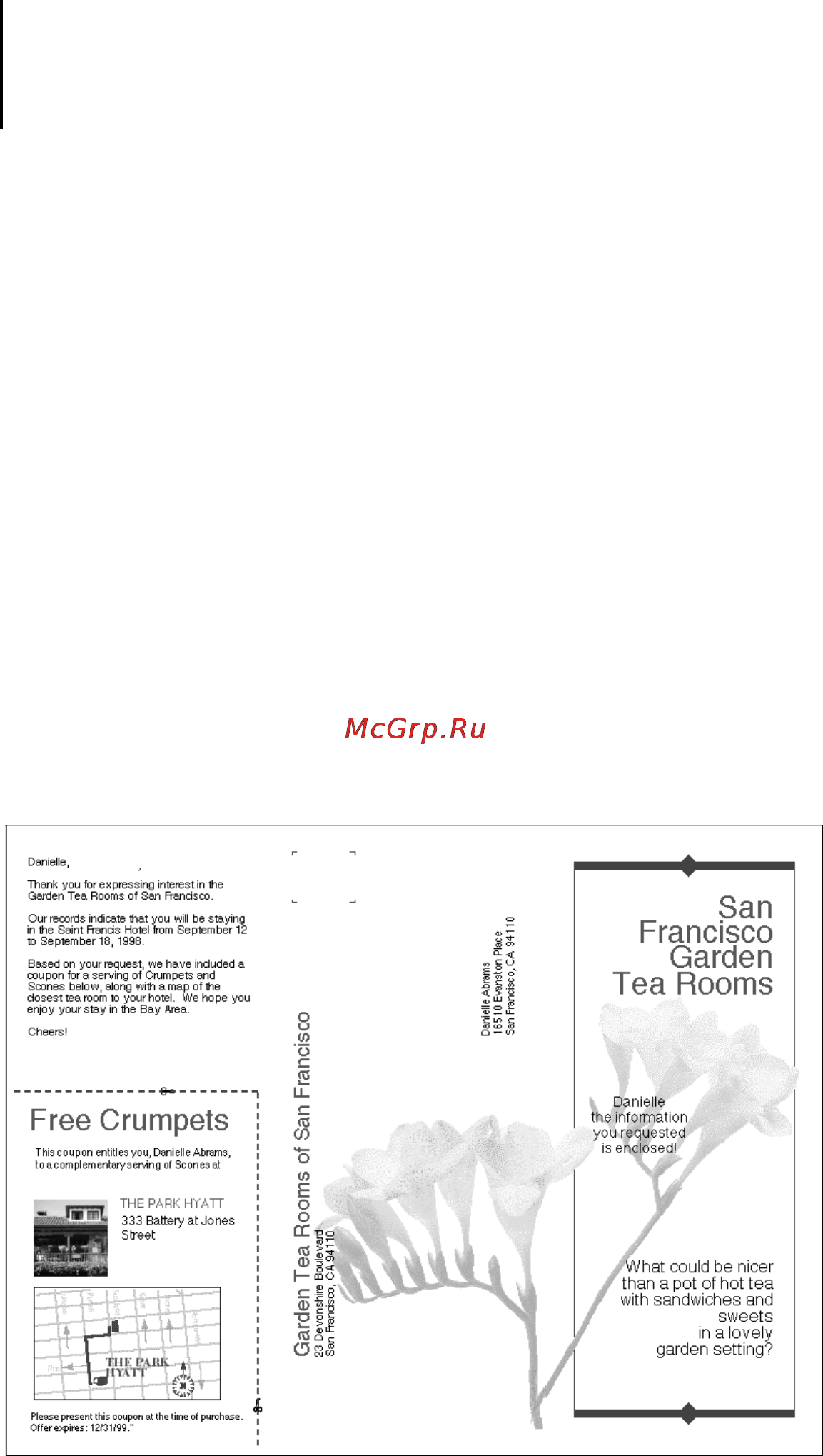

The example below shows the FreeForm Master and variable-elements document
combined. The variable data is simply overlaid on the master-elements document.
