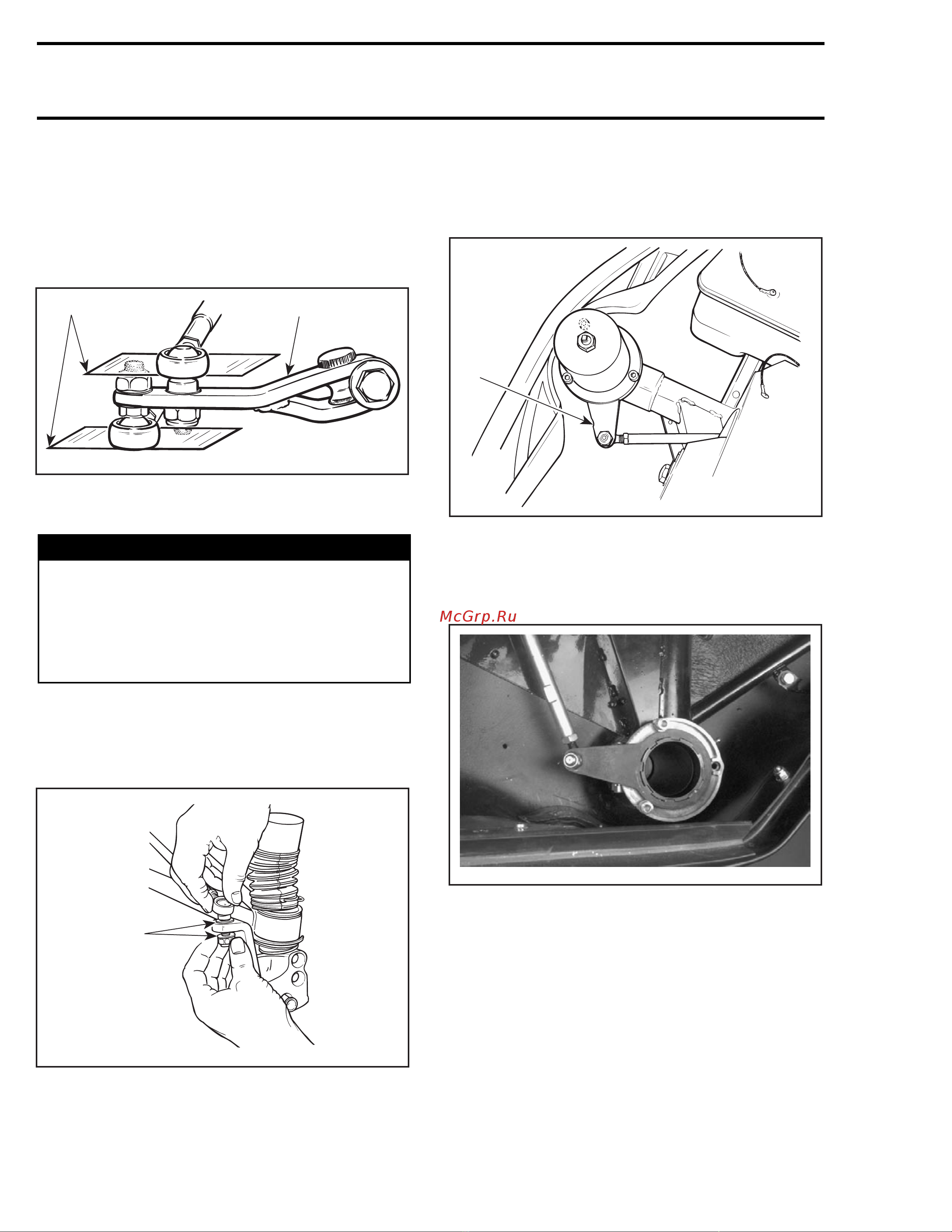

Section 10 STEERING / FRONT SUSPENSION
Subsection 01 (STEERING SYSTEM)
The ball joint should be restrained when tightening
thetierodendlocknut. Alignitsothetierodend
is parallel to the steering arm when assembled on
the vehicle, refer to the following illustration.
For proper torque specifications refer to the spe-
cific exploded view for the vehicle being serviced.
A02G0IA
1
2
TYPICAL
1. Parallel with steering arm
2. Steering arm
WARNING
The cut off section of the ball joint must run
parallel with the steering arm. When tighten-
ing lock nuts, restrain ball joint with appro-
priate size wrench. The maximum external
threaded length not engaged in the tie rod
must not exceed 20 mm (25/32 in).
21, Hardened Washer on Ball Joint Stud
Tundra and Skandic SUV
Install a hardened washer on each side of the arm.
A25G0MA
1
TYPICAL
1. Hardened washers
17, Steering Arm
Tundra
Steering arm notch must face outside of vehicle.
A05G0CB
1
1. Notch facing outside
Skandic LT/LT E/WT/SWT/WT LC
Install steering arm at mid-travel position when
handlebar and skis are facing straight ahead.
A22G0LA
TYPICAL
Skandic SUV/Expedition TUV
Steering arm must be installed parallel to ski.
522 mmr2005-053
