Section02ENGINE
Subsection 04 (ENGINE REMOVAL AND INSTALLATION)
A35C27A
1
2
4 3

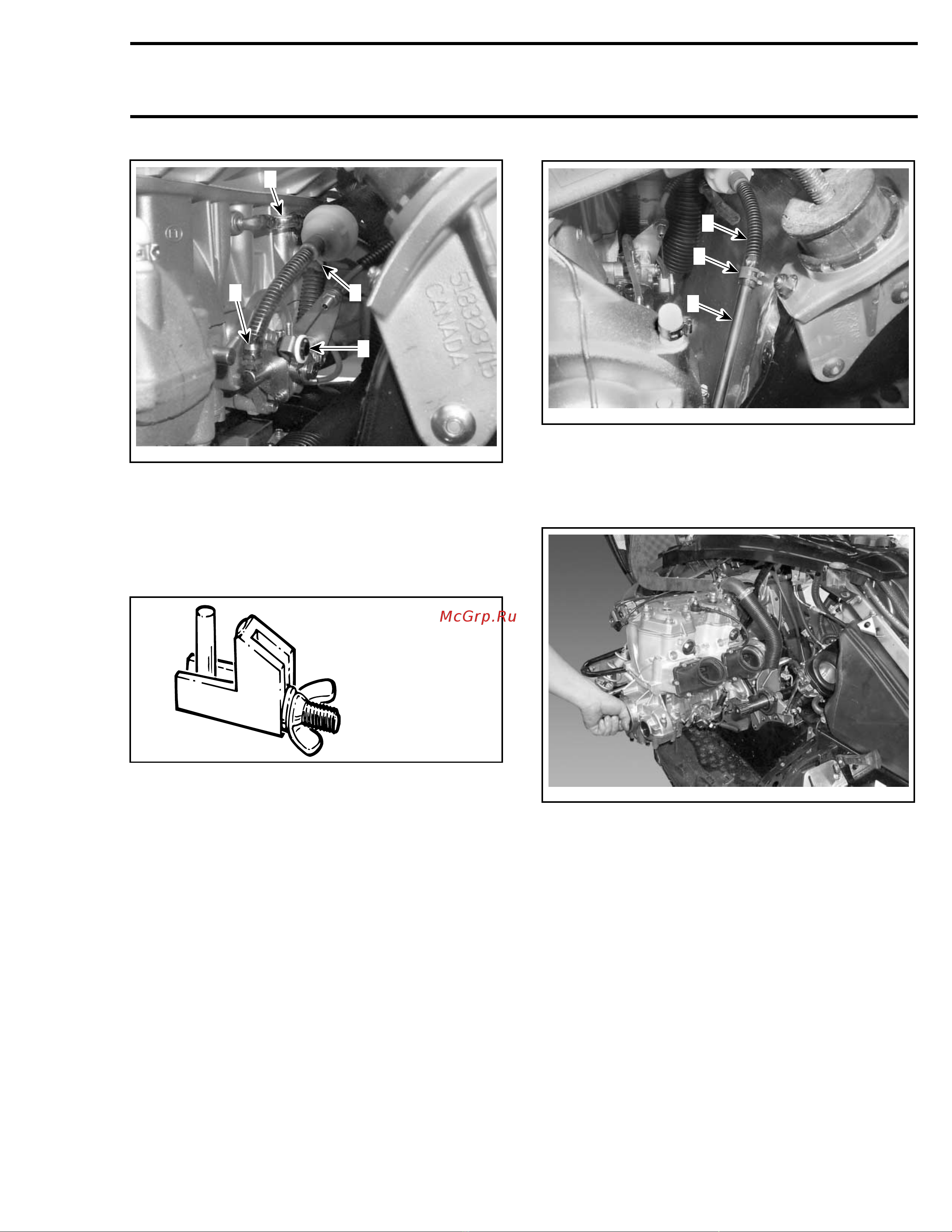

DETACH AND UNPLUG
1. Detach oil pump cable
2. Unplug oil return hose
3. Unplug engine vacuum hose
4. Unplug oil inlet hose
NOTE: For oil outlet hose, install a hose pincher
(P/N 295 000 076) to avoid oil spillage.
295 000 076
NOTE: For oil inlet hose, use a standard 1/4 inch
ratchet extension to block up hose. Secure hose
with existing clamp.
A35C28A
2
3
1
BLOCK UP OIL INLET HOSE
1. Oil inlet hose
2. Standard 1/4 inch ratchet extension
3. Spring clamp
Remove engine from vehicle.
A35C2AA
REMOVE ENGINE
INSPECTION
Check if engine supports are cracked, bent or oth-
erwise damaged. Replace if necessary.
Check rubber mounts and engine stopper on en-
gine support. Replace them if brittle, cracked or
otherwise damaged.
mmr2005-115 31
