DIP-20 - Defining the Automatic Video Switcher
4 Defining the Automatic Video Switcher

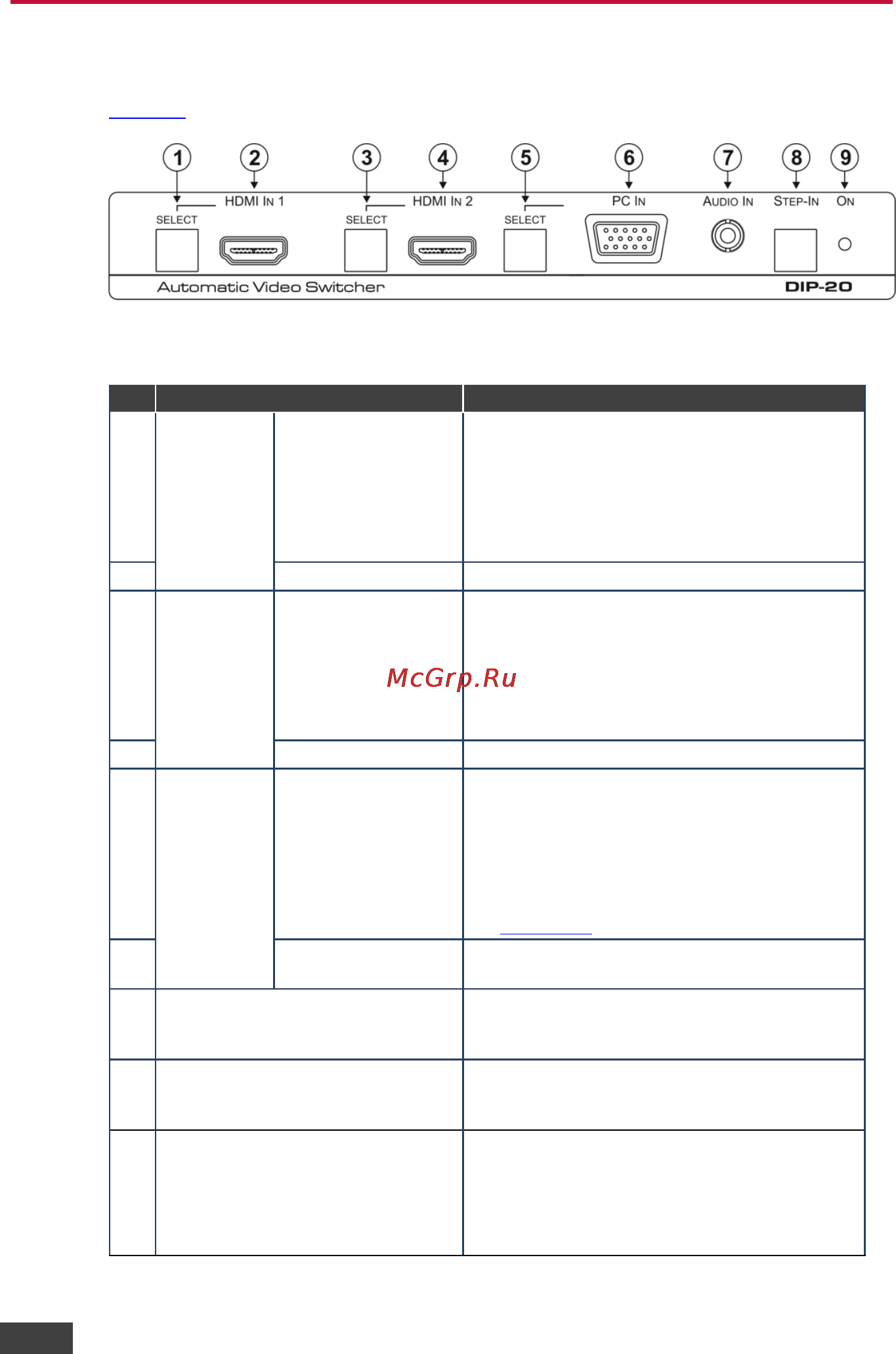

Figure 1 defines the front panel of the DIP-20.
Figure 1: DIP-20 Front Panel
#
Feature
Function
1
HDMI IN 1
SELECT Button
Press to select the HDMI 1 input.
When HDMI 1 is selected, the button:
Lights red when analog Audio In audio is
selected
Lights green when embedded audio is
selected
2
HDMI 1 Connector
Connect to the first HDMI source
3
HDMI IN 2
SELECT Button
Press to select the HDMI 2 input.
When HDMI 2 is selected, the button:
Lights red when analog Audio In audio is
selected
Lights green when embedded audio is
selected
4
HDMI 2 Connector
Connect to the second HDMI source
5
PC IN
SELECT Button
Press to select the PC graphics input.
When PC graphics is selected, the button:
Lights red when analog Audio In audio is
selected
Lights green when embedded audio from
embedded HDMI is selected, (see
Section 8.1)
6
PC Graphics 15-pin
HD Connector
Connect to the PC graphics source, (for
example, a laptop)
7
AUDIO IN 3.5mm Mini Jack
Connect to the unbalanced, stereo audio
source, (for example, the audio output of the
laptop)
8
Step-In Button
Press to take control of the input that this
device is connected to on a compatible
switcher
9
ON LED
The LED indicates the following:
Lights green—power is provided by a
power adapter
Lights red—power is provided via PoE to
another device
