DIP-20 – Defining the Automatic Video Switcher
7

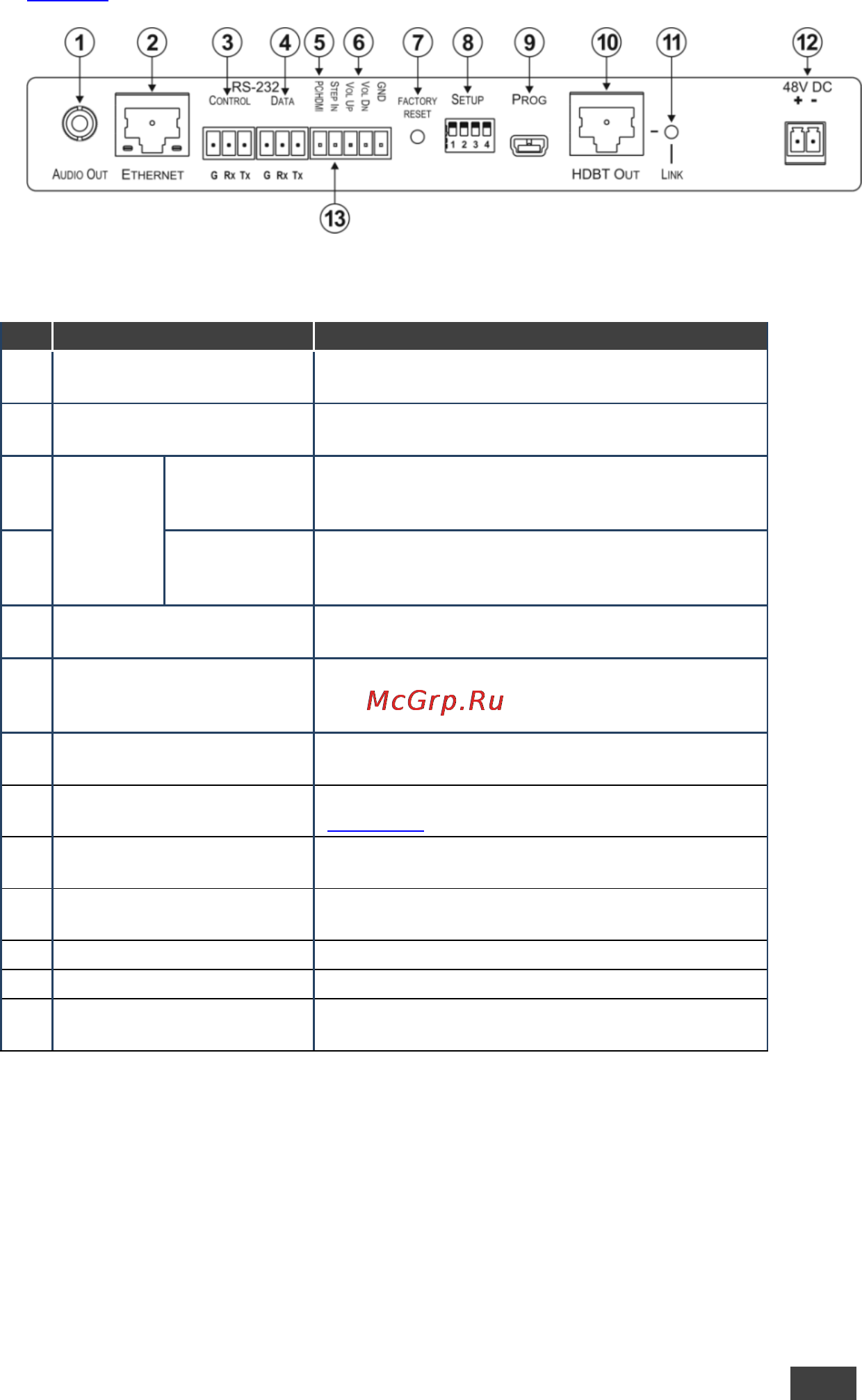

Figure 2 defines the rear panel of the DIP-20.
Figure 2: DIP-20 Rear Panel
#
Feature
Function
1
AUDIO OUT 3.5mm Mini
Jack
Connect to the unbalanced, stereo audio
acceptor, (for example, active speakers)
2
ETHERNET RJ-45
Connector
Connect to the LAN, (Ethernet traffic or PC
controller)
3
RS-232
CONTROL 3-
pin Terminal
Block
Connect to a serial controller or PC
4
DATA 3-pin
Terminal
Block
Connect to a serial data source or acceptor,
(RS-232 data over HDBT)
5
PC/HDMI Remote Toggle
Switch Terminal Block
Connect to a remote switch to toggle between
the PC graphics and HDMI inputs
6
Remote Contact-closure 4-
pin Terminal Block
Connect to remote momentary switches to
control input selection, step-in, and volume up
and down
7
FACTORY RESET Button
Short press to reboot, long press to reset the
device to factory default parameters
8
SETUP 4-way DIP-switch
Switches for setting the device behavior, (see
Section 8.1)
9
PROG Mini USB
Connector
Connect to a PC to perform a firmware upgrade
10
HDBT OUT RJ-45 TP
Connector
Connect to a compatible HDBT TP switcher or
receiver (for example, the TP-588D/TP-580Rxr)
11
LINK LED
Lights green when there is a valid HDBT link
12
48V DC Connector
Connect to the supplied power adapter
13
STEP IN Remote Toggle
Switch Terminal Block
Connect to a remote switch to activate the step
in function
