10
DIP-20 - Connecting the DIP-20 Automatic Video Switcher
5.1 Connecting the Remote Control Switches
You can connect remote, momentary-contact contact-closure switches to the
terminal block on the rear panel of the DIP-20 to control the device.

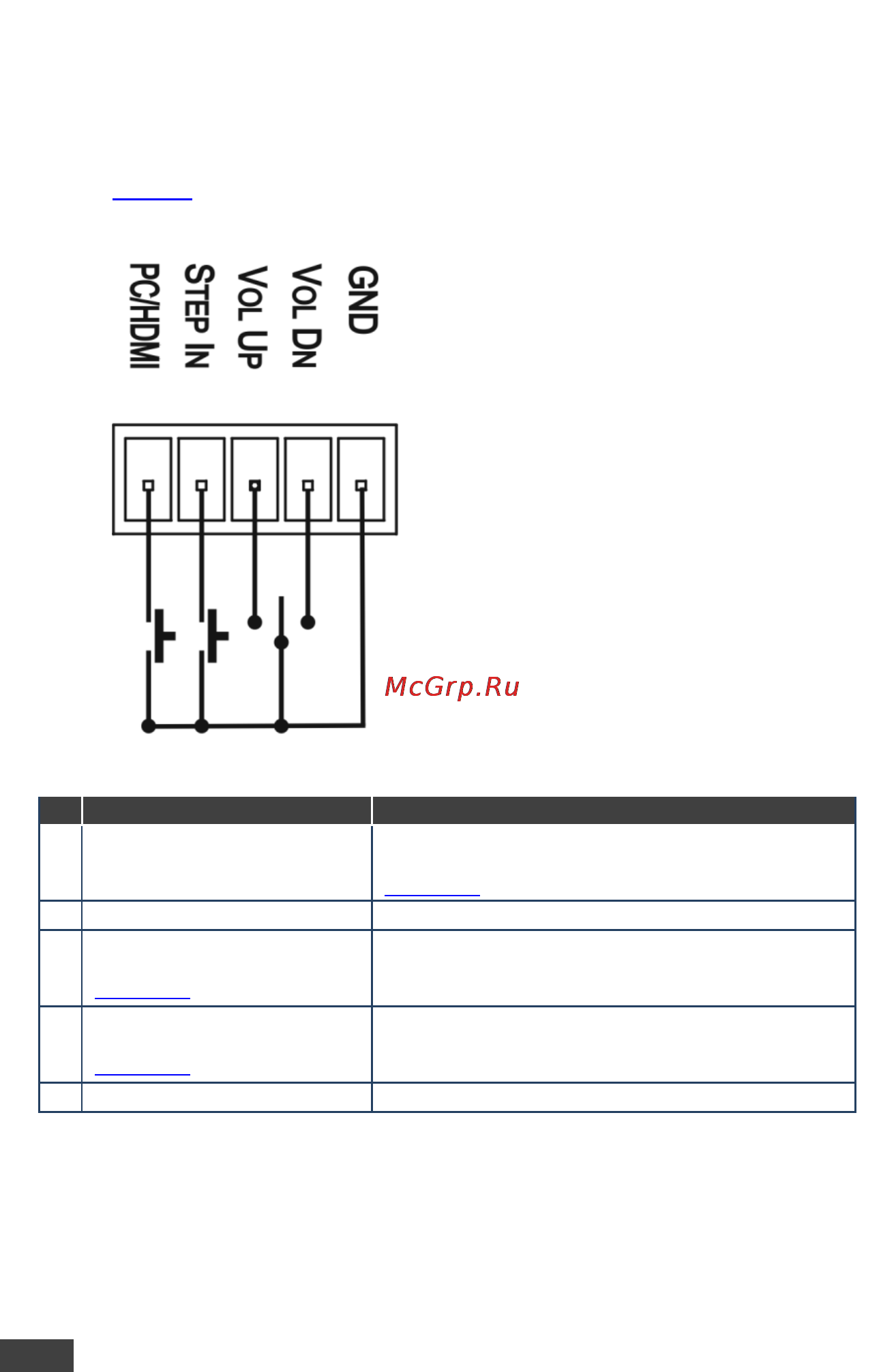

Figure 4 illustrates the connections from the terminal block to the contact-
closure switches.
Figure 4: Remote Switches Terminal Block
#
Feature
Function
1
PC/HDMI—input
selection/VGA phase shift
adjustment
Short press—Input toggle
Long press—Adjusts the VGA phase shift, (see
Section 6.4)
2
STEP IN
Activates the step-in function if relevant
3
VOL UP—analog audio output
volume increase control, (see
Section 7.3)
Short press—Increases the volume one step
Long press—Increases the volume from 0% to 100%
in 10 seconds
4
VOL DN—analog audio output
volume decrease control, (see
Section 7.3)
Short press—Decreases the volume one step
Long press—Decreases the volume from 100% to 0%
in 10 seconds
G
GND
Connect to the common side of the switches
