DIP-20 - Operating the DIP-20 Remotely Using the Web Pages

9.4 The Video and Audio Settings Page

The Video and Audio Settings page lets you modify the video, audio and

timeout parameters.

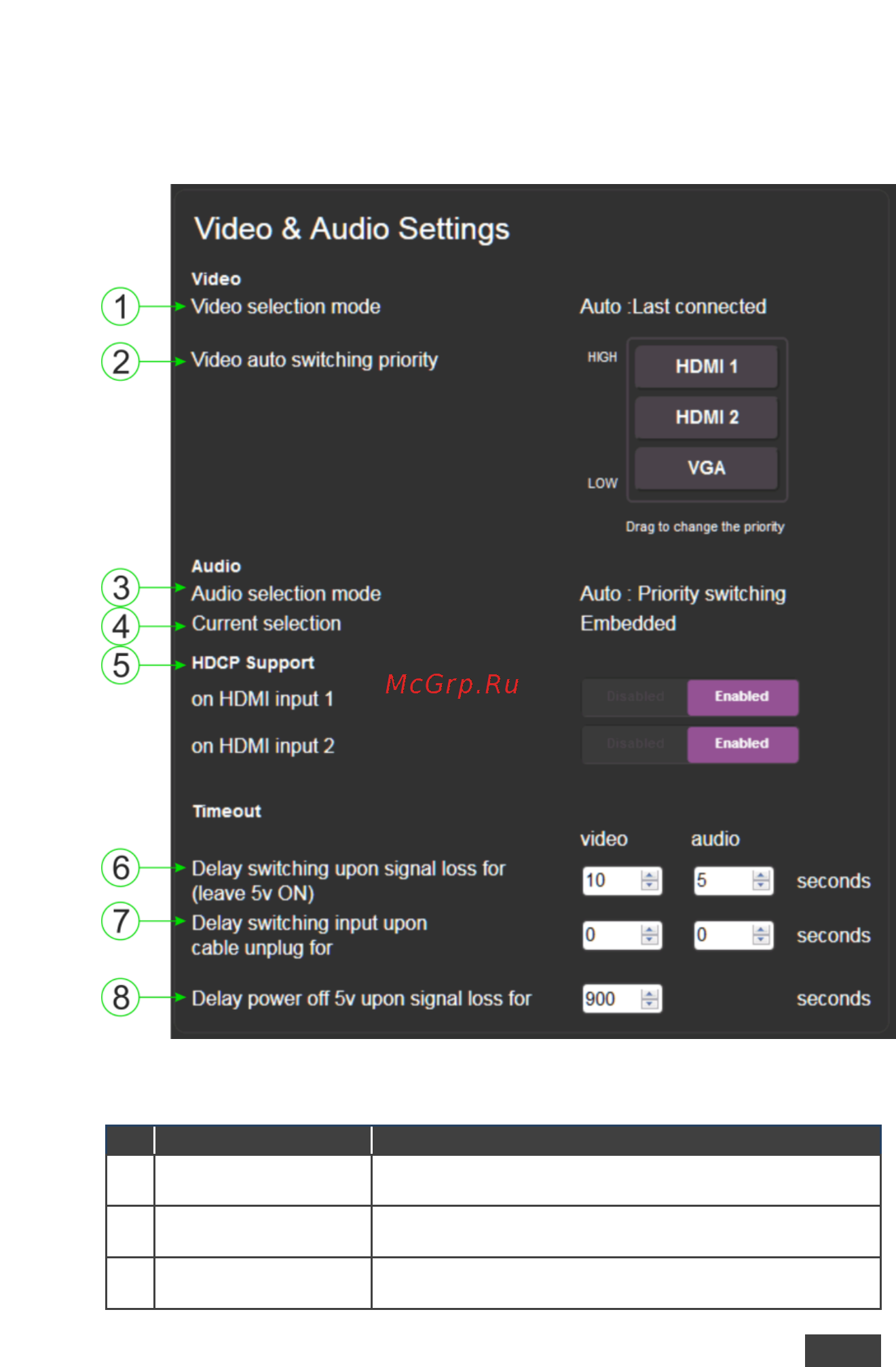

Figure 12: The Video and Audio Settings Page

Item

Description

Video selection mode

Indicator

Indicates the current video selection mode; manual, auto,

or auto last connected

Video auto switching

priority Buttons

Click and drag the buttons to the required priority level to

use when in auto mode

Audio selection mode

Indicator

Indicates the current audio selection; manual, auto, or

auto last connected
