ASPEN 7272 RCP CONTROL PANEL
7

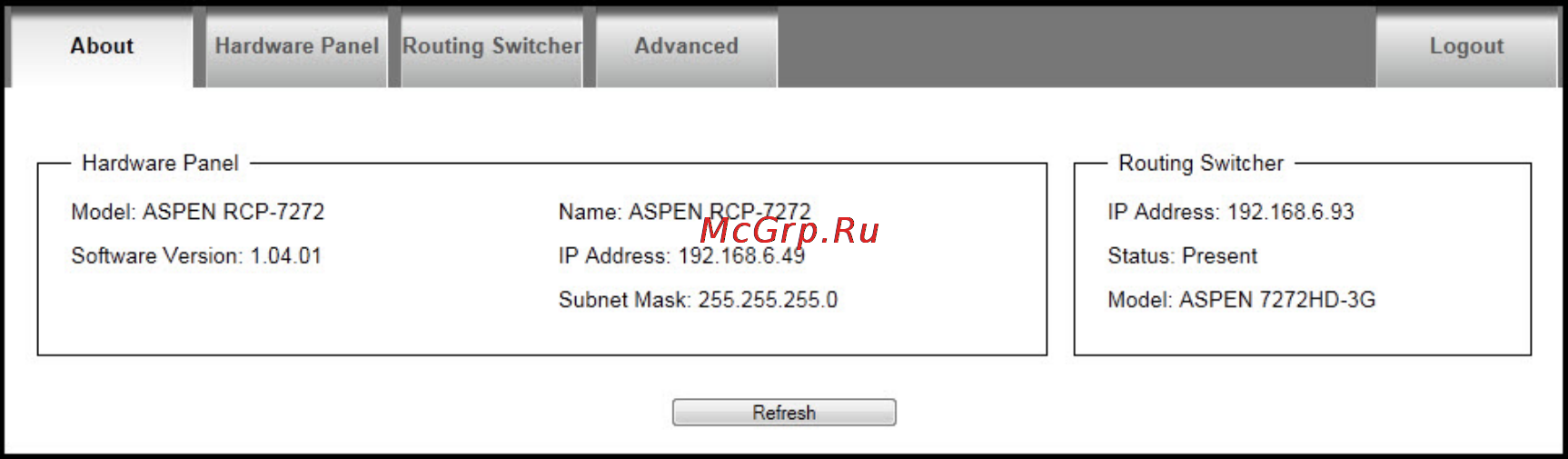

After a successful login, you will be provided with additional tabs as shown below.
The “refresh” button will re-read the current settings in the RCP.
