ASPEN 7272 RCP CONTROL PANEL
21

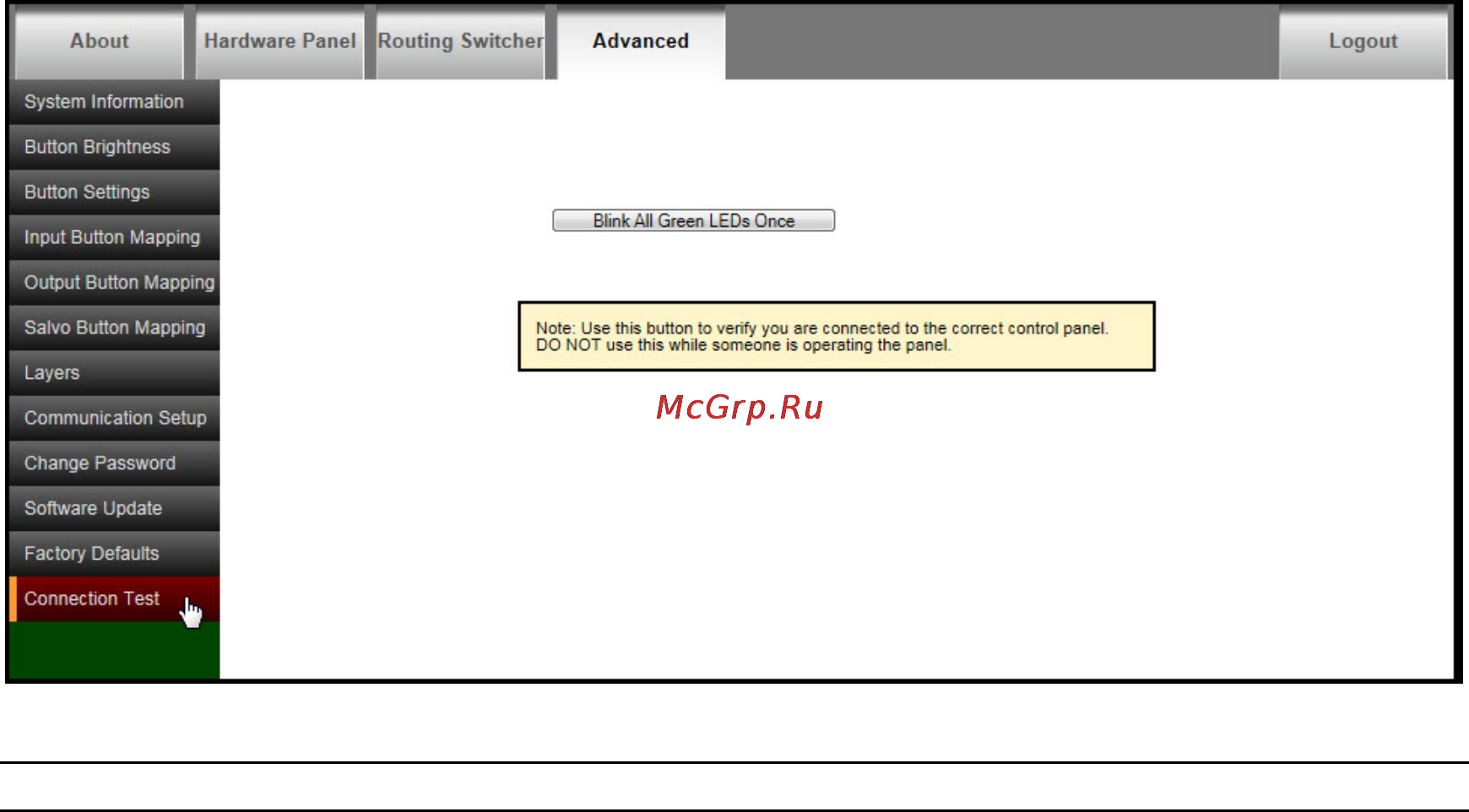

Connection Test
Connection to the correct panel can be tested in this screen.
CAUTION!
Use this button to verify you are connected to the correct control panel.
DO NOT use this while someone is operating the panel.
