ASPEN 7272 RCP CONTROL PANEL
11
Advanced
The “Advanced” tab allows access to “engineering” settings such as button brightness,
changing password, software updates, etc.
Clicking on the bars on the lefthand side of the screen gives access to adjustments and
status.

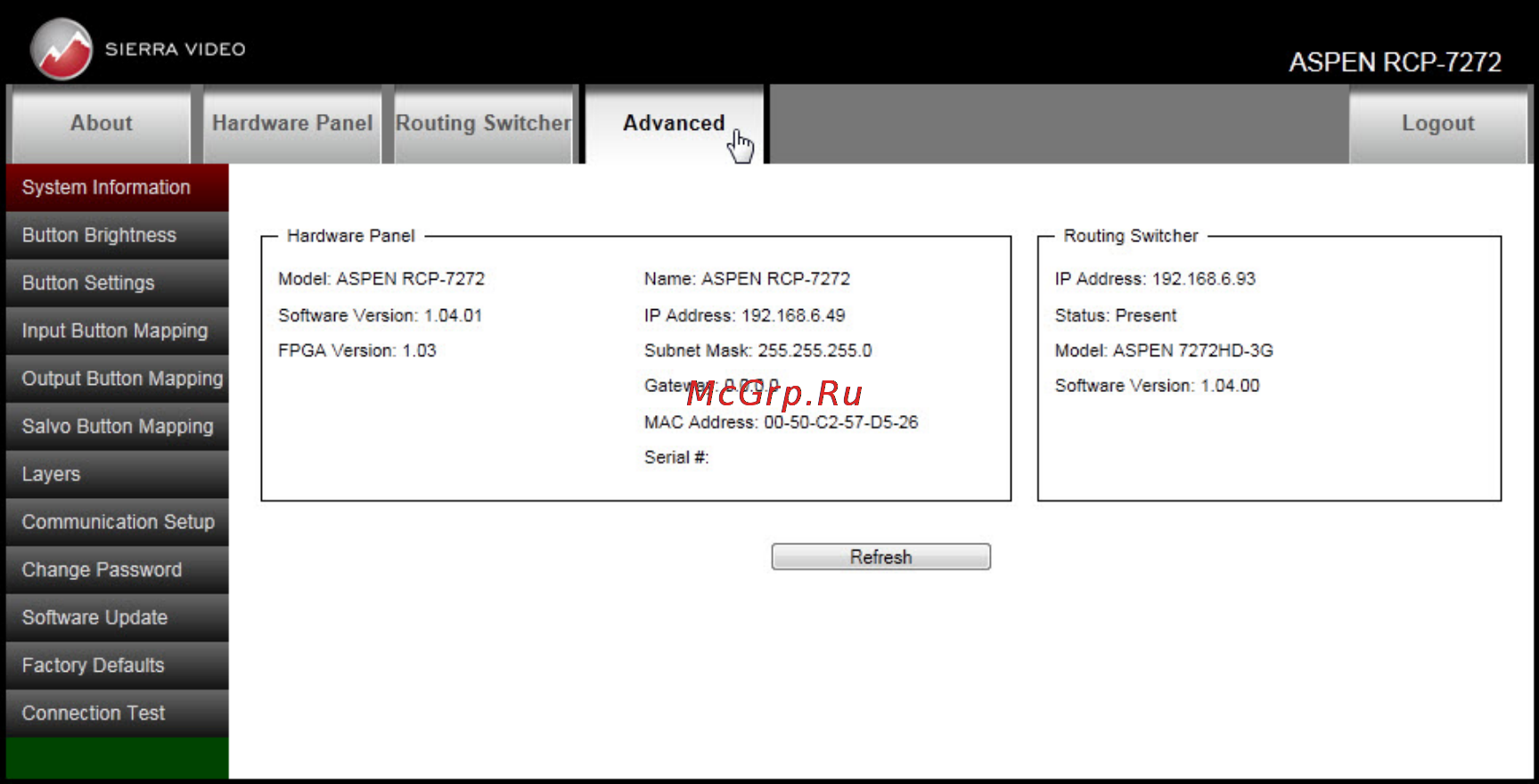

System Information
The “System Information” tab provides an overview of the system status and current
configuration settings.
