Layers

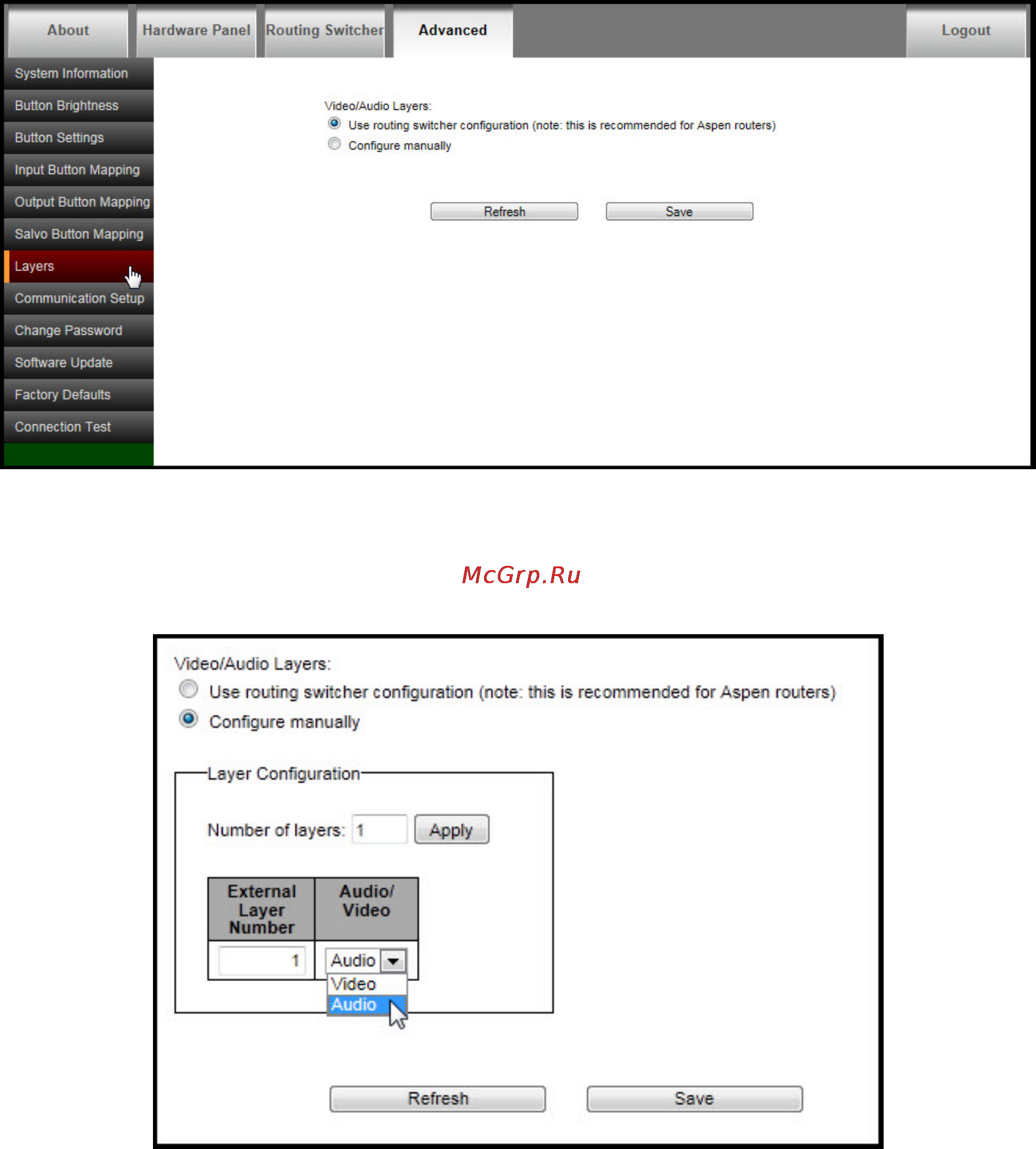

The panel can be configured to control specific layers in this screen.

The setting “Use routing switcher configuration” is the default and is highly recomended

for use with the Aspen routing switchers.

WARNING: Contact Sierra Customer service before changing this setting.

Configure Manually

External layers can be configured manually.Choose “Configure Manually” and a new

window will display.

Enter the number of layers and hit Apply. Then select the signal type from the dropdown

window and Save the configuration
