SIERRA VIDEO
10
Routing Switcher
Overview
There can be several routing switchers and/or RCP panels on a network at the same time
provided they are at different IP addresses.

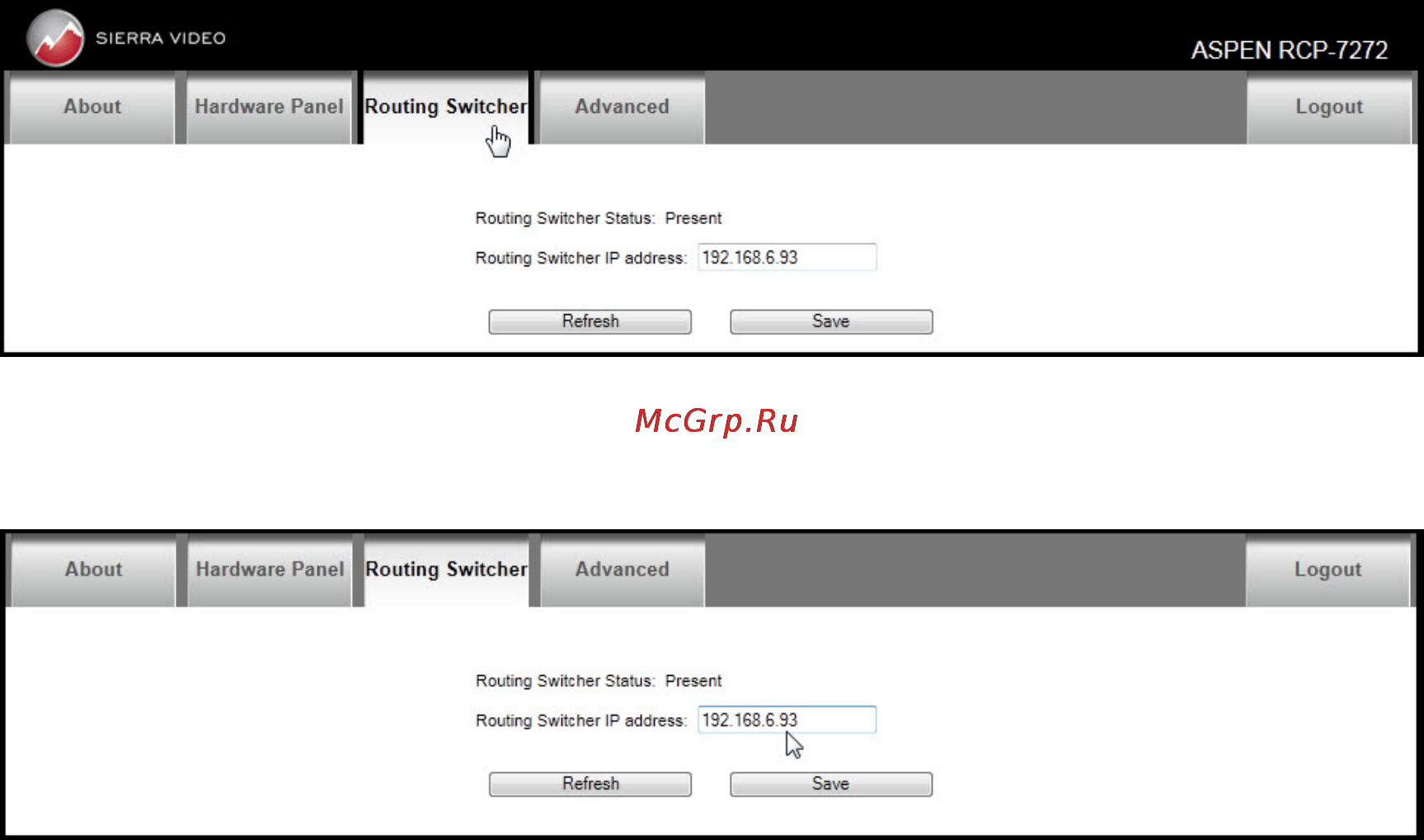

Select the tab “Routing Switcher” and enter the IP address of the routing switcher to be
controlled.
Place your curser in the box and enter the IP address of the routing switcher you wish to
control.
Make any changes necessary and press “Save” to implement changes. The control panel
will need to be reset for these changes to take effect.
