ASPEN 7272 RCP CONTROL PANEL
9
Name

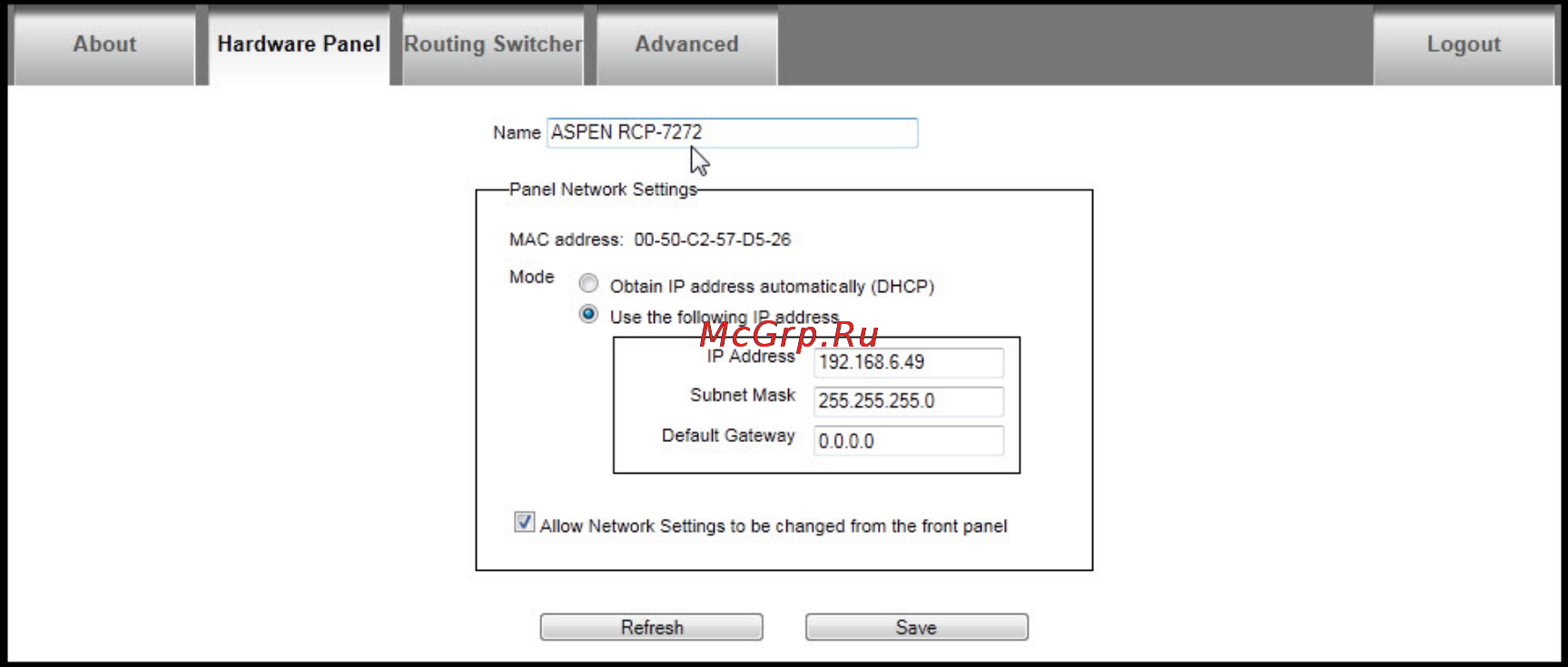

The RCP can be assigned a name if desired, i.e. Edit A, Production……
To change name of the RCP place the curser in the box and type in a new name.
Make any changes necessary and press “Save” to implement changes.
