ASPEN 7272 RCP CONTROL PANEL

Button Settings

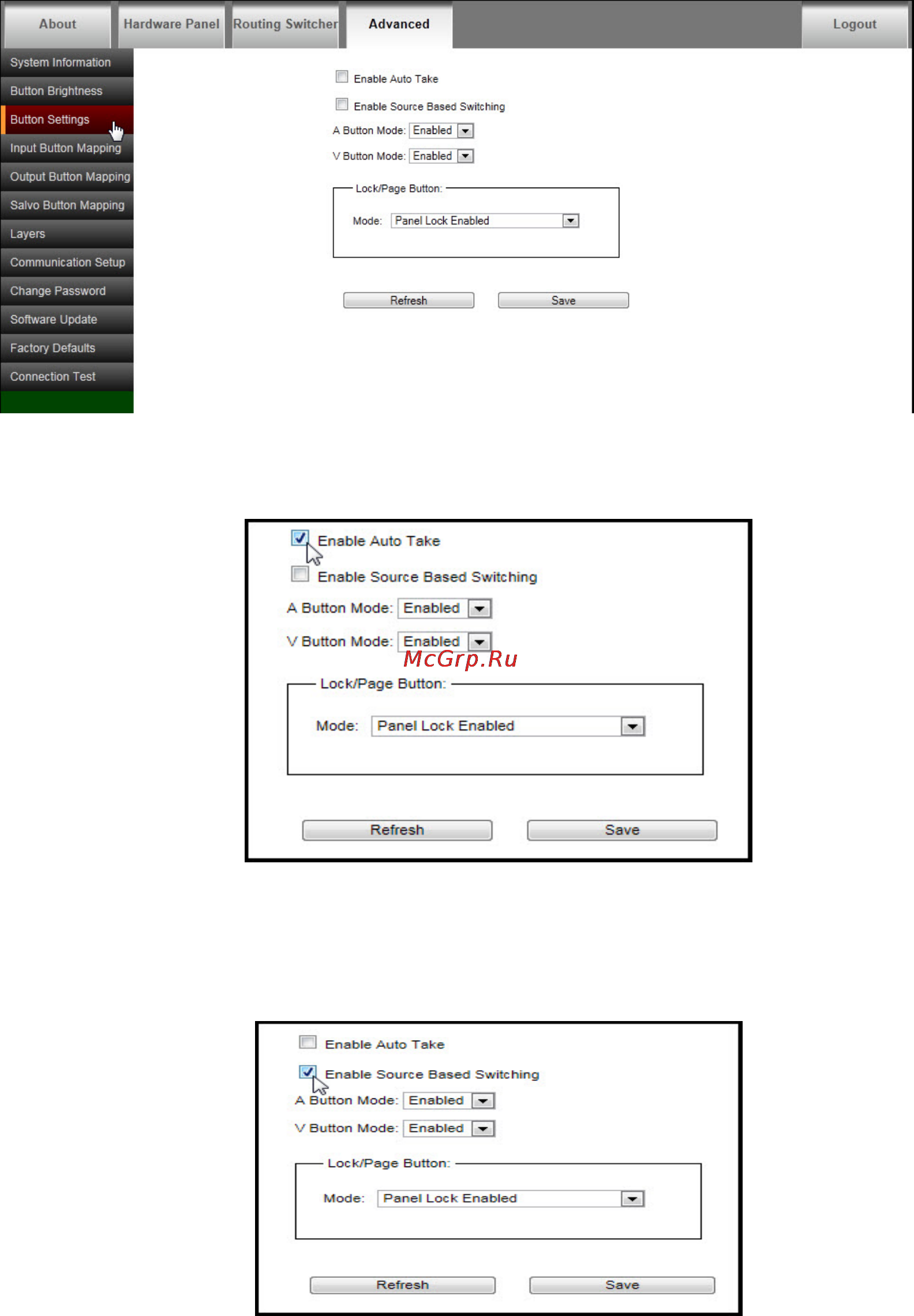

The “Button Settings” tab sets lock, and “Take” mode parameters of the front control

panel buttons.

The control panel can be set for “Auto Take” mode. In the “Auto Take” mode, the routing

switcher switches as soon a destination and source are selected (or a source and

destination are selected if “Enable Source Based Switching” is selected (see below).

Source based switching allows for a source to be selected first followed by selecting a

destination or multiple destinations.

The factory default setting is Destination Based switching where the destination is

selected first followed by selecting a source (box unchecked).
