SIERRA VIDEO

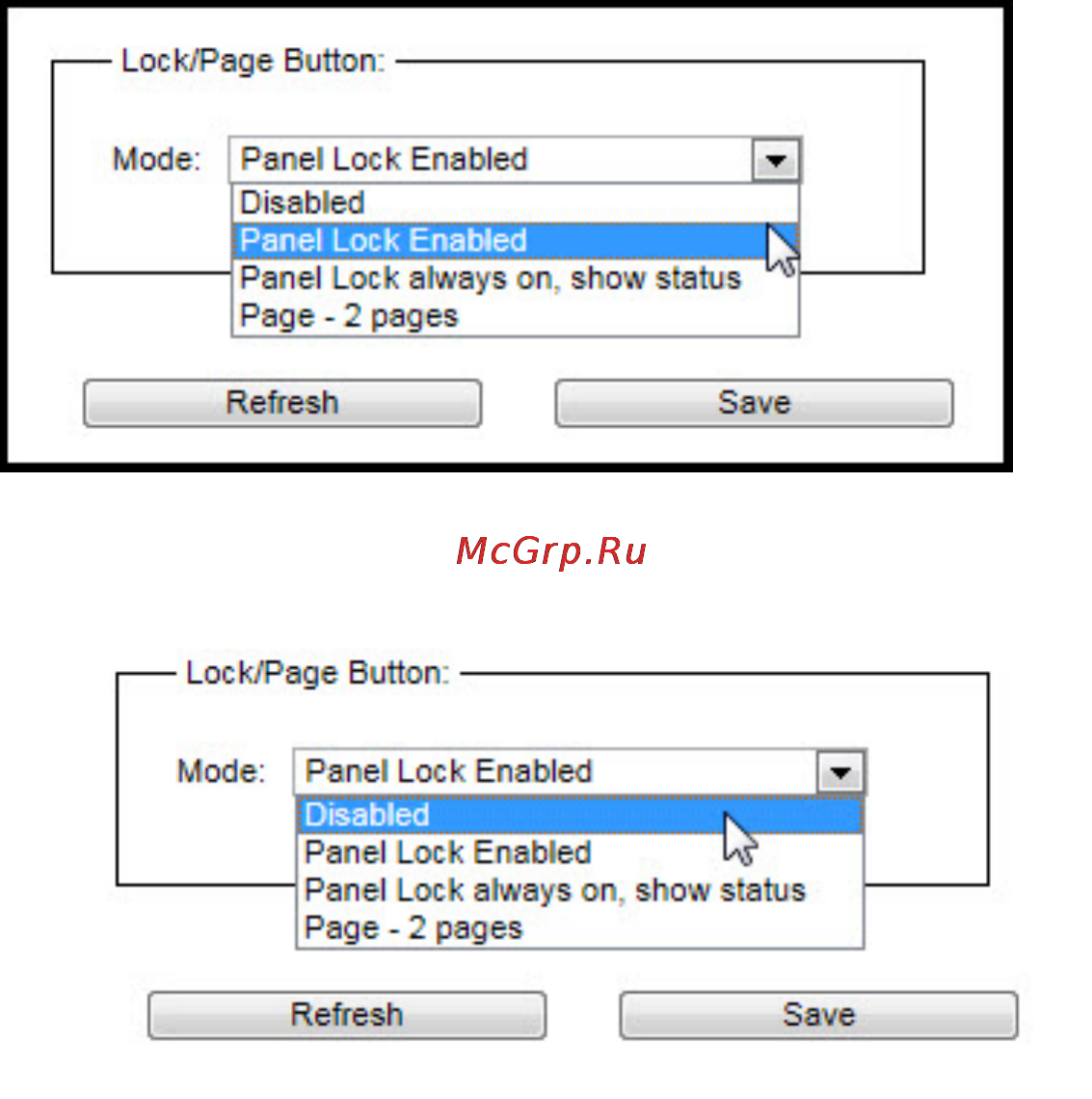

Lock/Page Button- The “Lock” button on the front panel can disable panel operation.

There are 4 modes of operation for this button;

1. Disabled: Button has no function assigned to it. Pressing it has no effect.

2. Panel Lock Enabled: Lock button is enabled. It goes on/off when pressed. The

button will be RED when it is on. This is the default mode of operation.

3. Panel lock always on, show status: Lock button disabled and is always on. The

button will be PURPLE.

4. Page – 2 pages: Button can be used to switch between pages of input or output

buttons.

While the panel is locked:

The following buttons will be off and disabled (nothing will happen when they are

pressed):

 FUNC button (see exception for Factory Defaults)

 A button

 V button

 TAKE button

The “Lock” button on the front panel can also be used to change “pages” of operation.

In this mode, this button will sequence through 2 pages of inputs and outputs. The button

will have a different color for each page. The color for each page is also settable via the

web page.

By default this button will always start on page 1.

1. Pressing the button once will go to page 2.

2. Pressing the button a second time will go back to page 1
