ASPEN 7272 RCP CONTROL PANEL
15

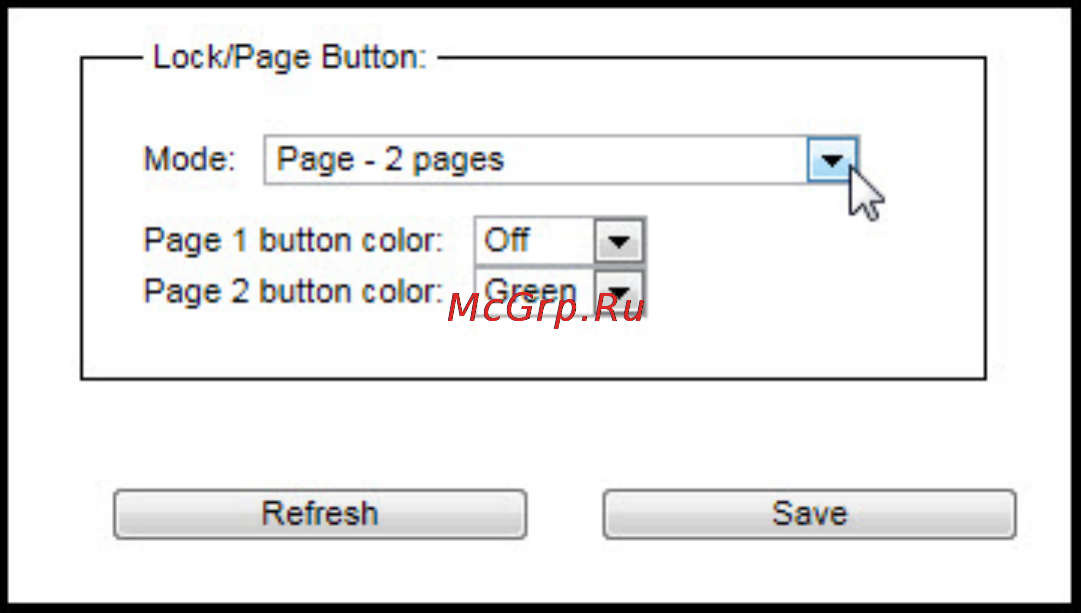

When “Pages” are selected the window changes to allow you to change the button color
to indicate which “page” you are on.
The “refresh” button will re-read the current settings in the routing switcher.
Make any changes necessary and press “Save” to implement changes. The control panel
will need to be reset for these changes to take effect.
