SIERRA VIDEO
16
Input Button Mapping

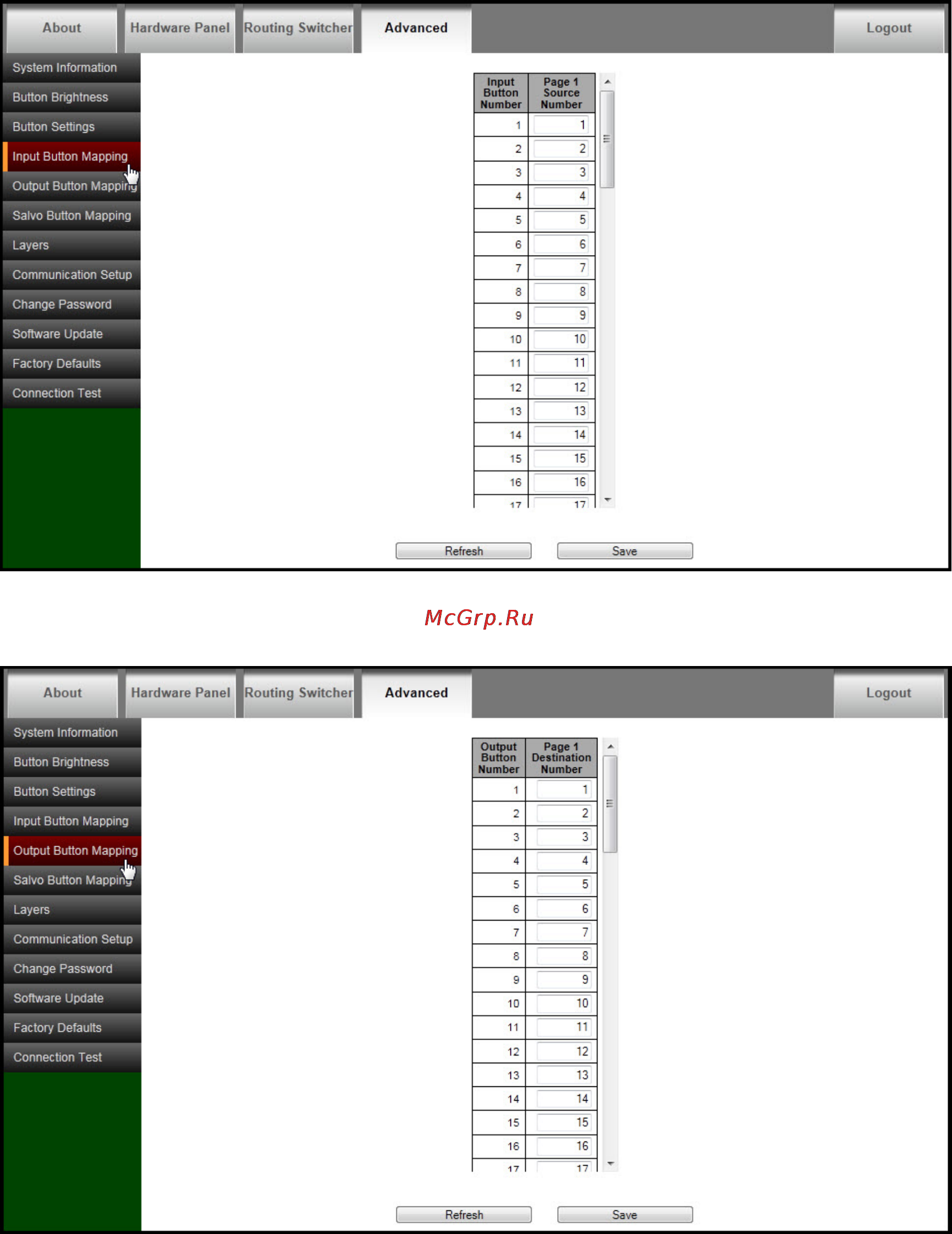

Panel buttons can be assigned to different source, destination (connectors), and salvo
numbers to be controlled on the router. “0” indicates the button is disabled.
Output Button Mapping
