7
PLACEMENT AND CONNECTING

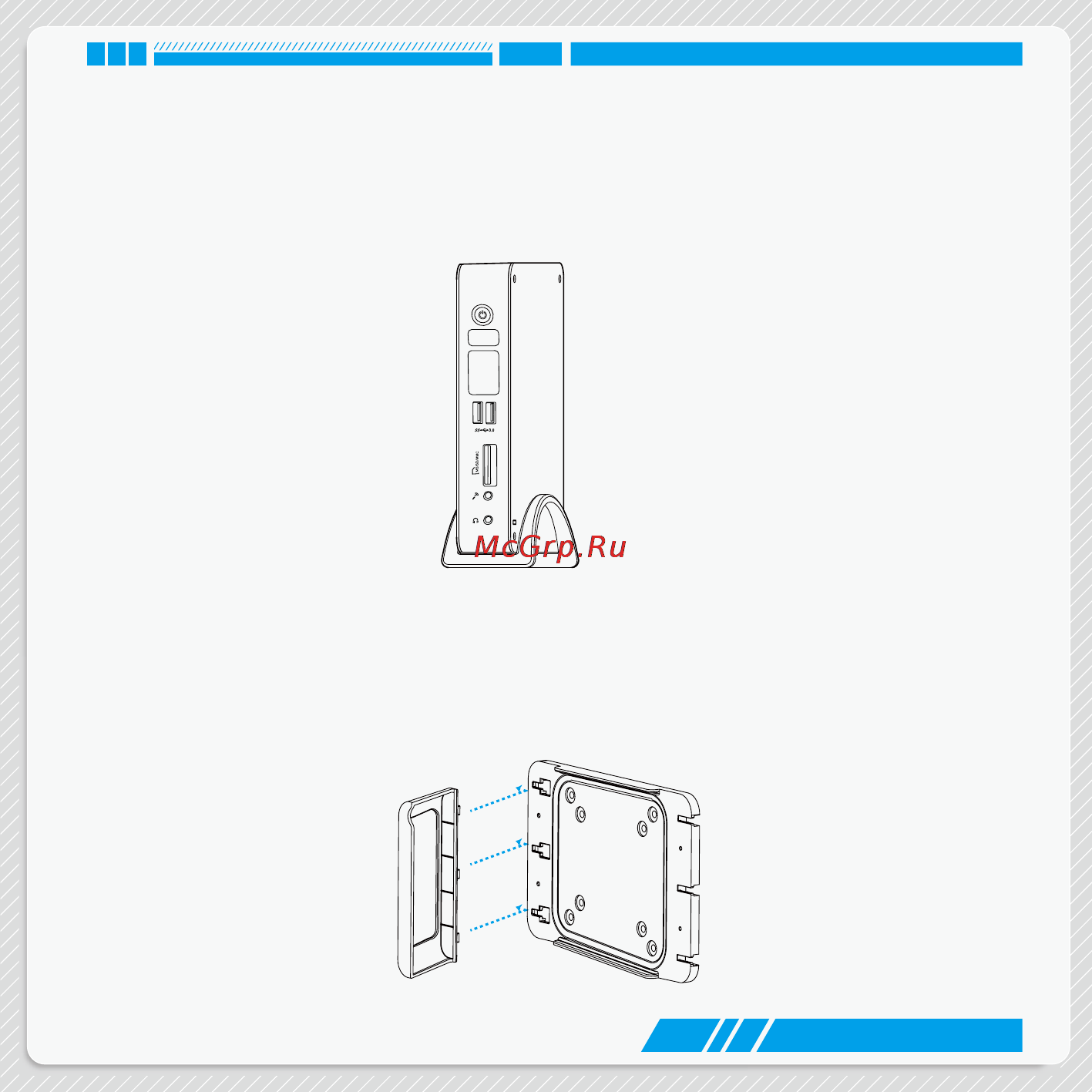

2-1 Placement of NanoPC
In Seat Base
Place your NanoPC into the groove of the Seat Base.
Installing to Display
1. Assemble one side of the VESA mount.
■ Placement of NanoPC
■ Connection of NanoPC
