Foxconn at-9700 black [17/53] Placement and connecting
![Foxconn at-9500 black [17/53] Placement and connecting](/views2/1167522/page17/bg11.png)
11
PLACEMENT AND CONNECTING

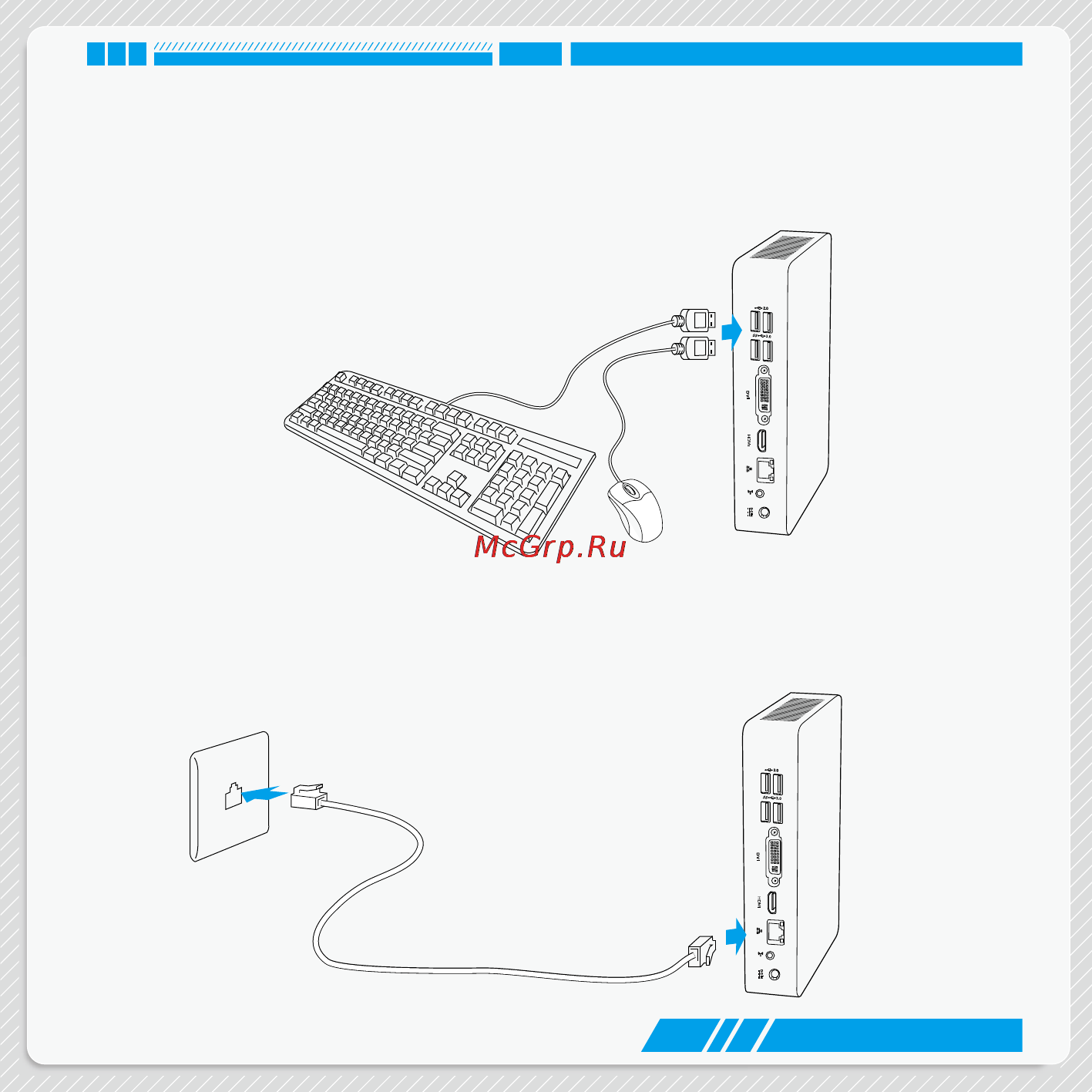

Connect USB devices
Connect USB devices to the USB ports, for example, mouse, keyboard devices.
As to Windows 7 system, you need to install the USB 3.0 driver in NanoPC USB disk before using the
USB 3.0 ports.
Connect network cable
Connect one end of a network cable to the RJ-45 LAN port, and the other end to a hub or
switch.
