Foxconn at-9700 black [16/53] Placement and connecting
![Foxconn at-9330 black [16/53] Placement and connecting](/views2/1167522/page16/bg10.png)
10
PLACEMENT AND CONNECTING
2-2 Connection of NanoPC

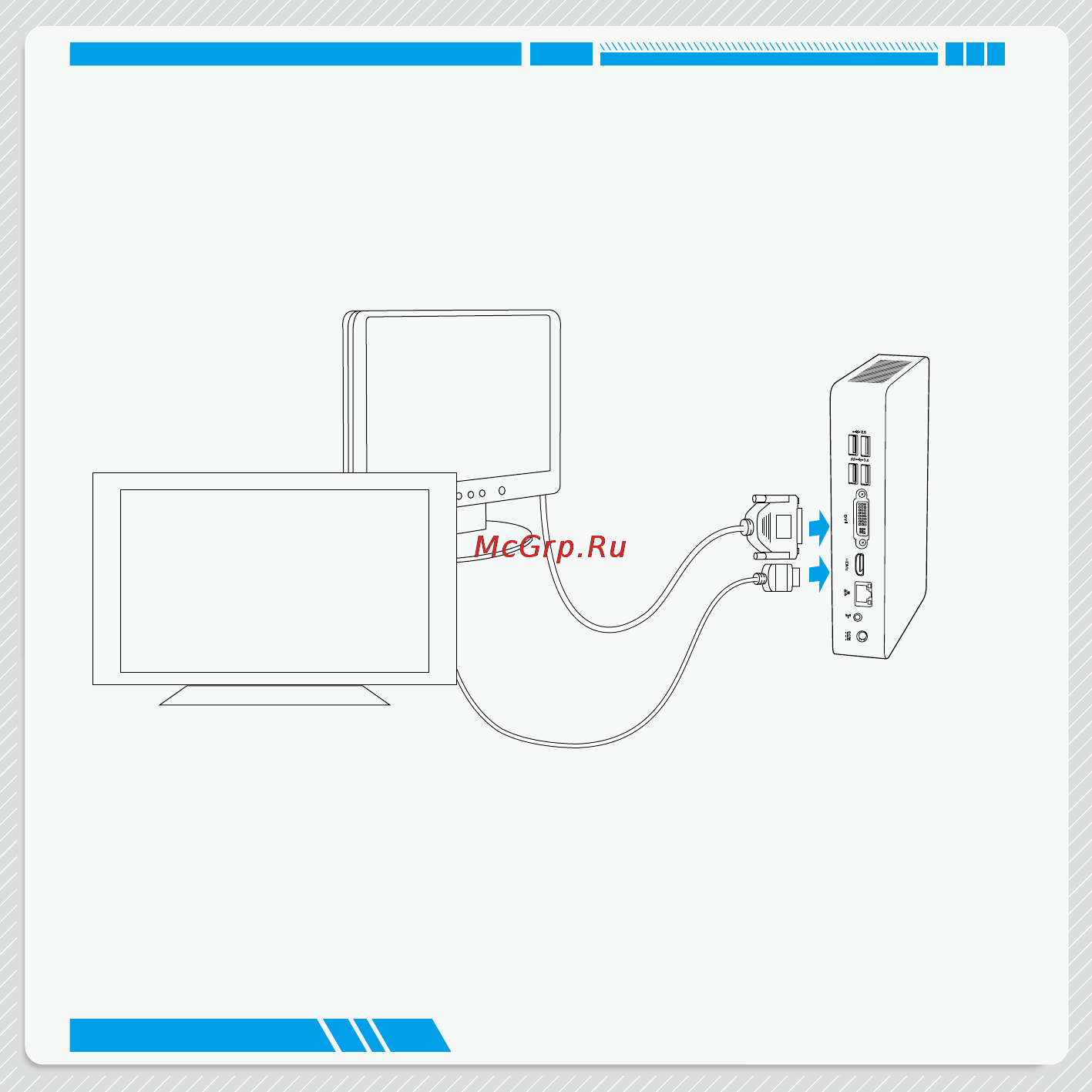

Connect display
Connect a display or TV that has HDMI port to your NanoPC.
