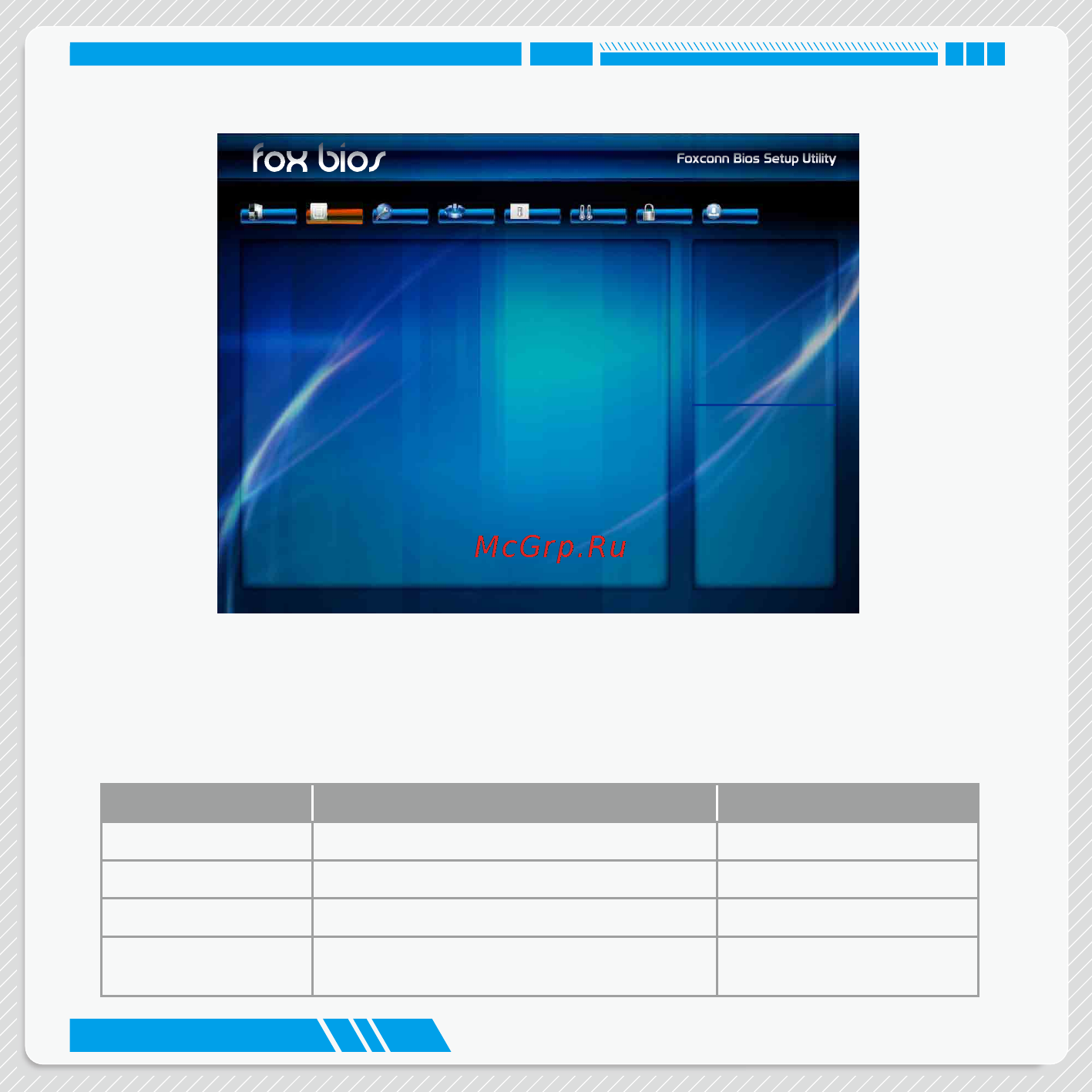

![Foxconn at-9330 black [24/53] Smart bios](/views2/1167522/page24/bg18.png)
18
BIOS SETUP
Smart BIOS
► Smart Power LED
Smart Power LED is a feature built on your motherboard to indicate different states during Power On
Self Test (POST). The LED is located at the front panel, and it displays POST state by different long-
short blinking intervals. You can always leave this state enabled.
System Status Power LED Status Stop Blinking Condition
Normal Always On Always On
No Memory Continue blinking On (1sec.), Off (1sec.) Reboot & Memory OK
No Display Continue blinking On (2sec.), Off (2sec.) Reboot & Display OK
Post Error Message
Quick blinking twice (1/3sec. On, 1/3sec. Off),
one long On (1sec.), continuously.
Enter Setup or Skip
Main Advanced Boot Power Health Security Save&ExitF-center
→ ←: Select Screen
↑ ↓/Click: Select Item
Enter/Dbl Click: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Version 2.17.1246. Copyright (C) 0001 American Megatrends, Inc.
Smart Power LED [Disabled]
Smart Boot Menu [Enabled]
Smart Power LED
Settings
