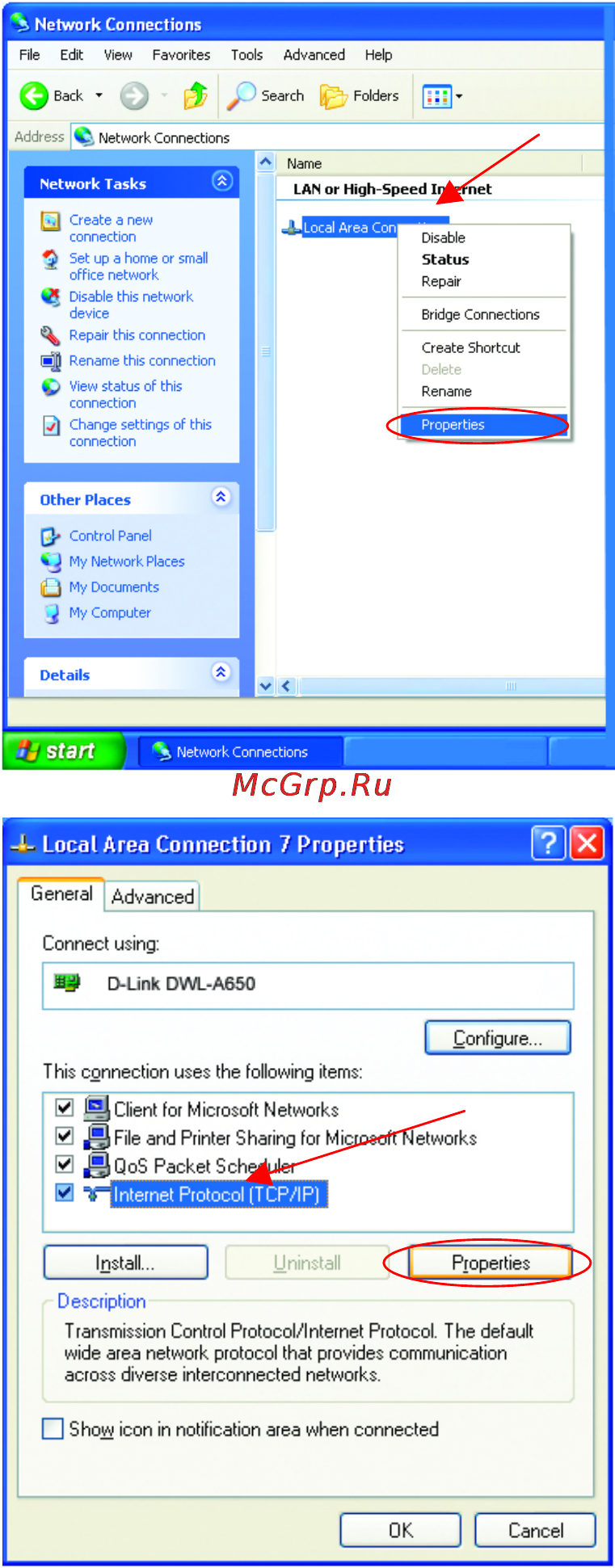

Right-click on Local Area

Connections.

Double-click Properties

Highlight Internet Protocol

(TCP/IP)

Click Properties
